Zoro Select Swivel Plate Caster, Rubber, 4 in., 400 lb. P25S-EP040K-14-001 - main

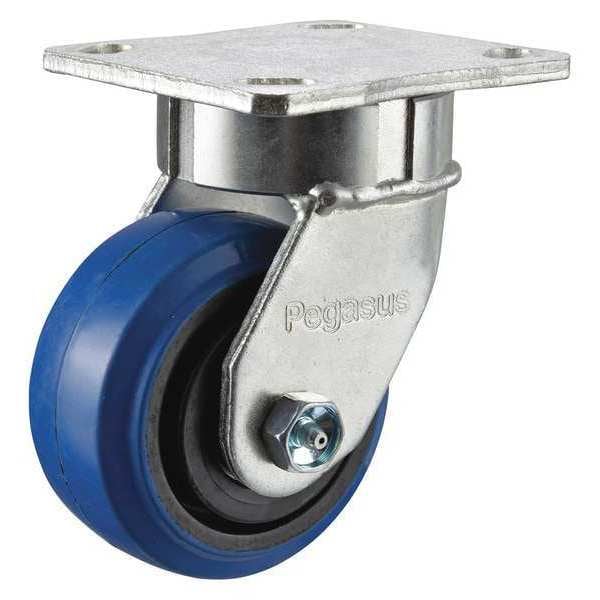

Swivel Plate Caster, Rubber, 4 in., 400 lb.

  • Mfr # P25S-EP040K-14-001

  • Zoro # G6867201

product price:  $44.49
/ea

Key Features

Number of Wheels
1
Thread Guards
No
Caster Temp. Range Available
Yes
Stem Dia.
No Stem
Inside Bolt Hole Spacing
3 in x 3 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P25S-EP040K-14-001
Zoro #
G6867201
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Overall Height
5-5/8in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Swivel Radius
3-3/16 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
1/4in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in

Details

Number of Wheels
1
Thread Guards
No
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Load Rating
300 lb
Includes
Complete Caster
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Non-Marking
Yes
Application
Dollies, Floor Trucks, Shop Carts, Waste Disposal Trucks
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Features
Maintenance Free
Frame Finish
Zinc Plated
Item
Swivel Caster
Wheel Color
Blue
Caster Frame Material
Steel
Core Color
Gray
Caster Sub-Type
Swivel
Caster Brake Included
No
Replacement Wheel
Mfr. No. SWB-0420-08
Standards
ANSI ICWM
System of Measurement
Inch
Tread
Standard
Tread Color
Blue
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Swivel Construction
Kingpinless
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Material
Elastomer
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Color
Blue
Load Capacity
300 lb
Accessories
Optional: P-DL25-14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
P25 Series
Compatible With
SWB-0420-08
Load Capacity - Maximum
300 lb
Wheel Hardness Rating
90 Shore A
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
