  11. Plate Caster, 2425 lb. Ld Rating, Ball

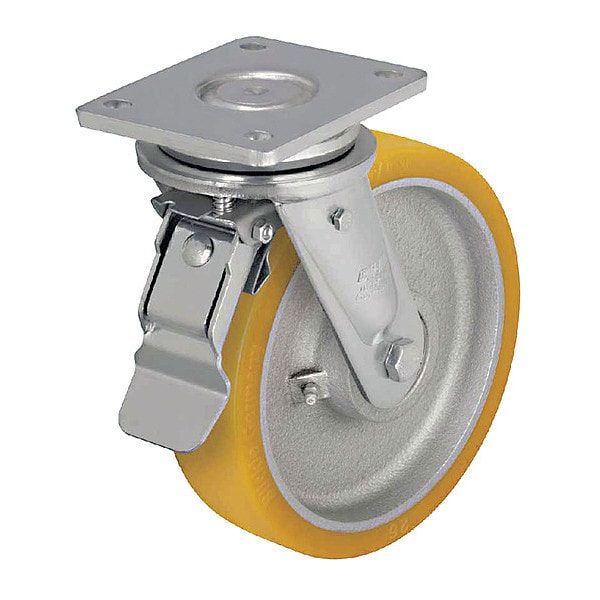

Zoro Select Plate Caster, 2425 lb. Ld Rating, Ball LO-GTH 251K-ST - main

Plate Caster, 2425 lb. Ld Rating, Ball

  • Mfr # LO-GTH 251K-ST

  • Zoro # G7279489

product price: $310.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LO-GTH 251K-ST
Zoro #
G7279489
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
10 in
Wheel Width
2 in
Mounting Height
11 5/8 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
8 mm
Mounting Bolt Dia.
3/8 in
Overall Height
11-39/64in
Swivel Radius
195 mm
Outside Slot Spacing - Width
3.156 in
Inside Slot Spacing - Width
2.969 in
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
4.125 in
For Axle Dia.
12 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
Total Lock
Load Rating
2425 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Replacement Wheel
Mfr. No. GTH 251/25K
Features
Floor Protective
Standards
RoHS, ICWM
Caster Brake Included
Yes
Wheel Color
Yellow
Extended Lead
No
Frame Finish
Zinc Plated
Thread Guards
No
Caster Temp. Range Available
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes
Stop-Top Total-Lock Brake
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Swivel Lock Type
Total Lock
Load Rating Range
Heavy Duty
Wheel Core Material
Cast Iron
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
1200 kg
Tread
Standard
Series
LO Series
Tread Color
Light Brown
Load Capacity - Maximum
2,645 lb
Compatible With
GTH 251/25K
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Brake Location
Face
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 2425 lb, Swivel Lock Type Total Lock, Wheel Dia. 10 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
