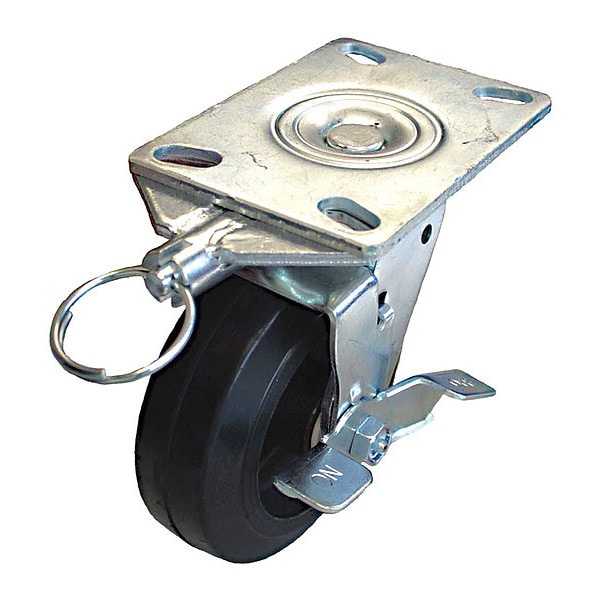

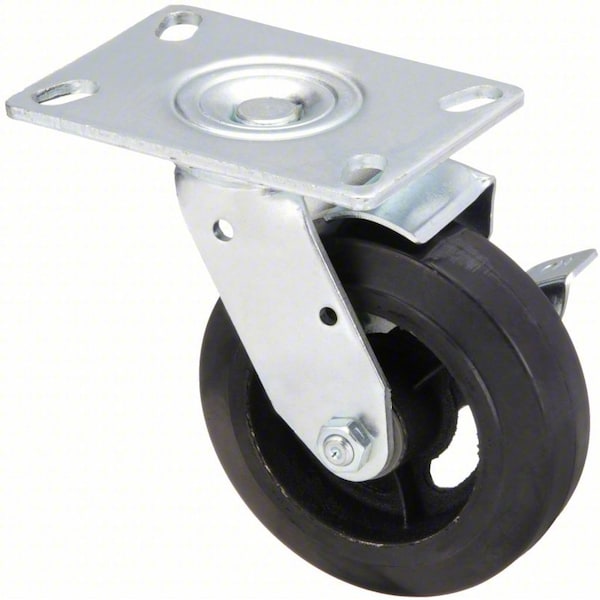

Plate Caster, 410 lb. Load, Black Wheel

  • Mfr # P21S-RY060R-16-WB-DL
  • Zoro # G6539963
product price:
$
167.99
/ea
Free Shipping & Returns

Key Features

Overall Height
7-1/2"
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Wheel Color
Black
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-RY060R-16-WB-DL
Zoro #
G6539963
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2"
Wheel Width
2 in
Swivel Radius
4 3/4 in
Wheel Dia.
6 in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
7 1/2 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
7/32 in
Overall Wheel Width
2 in
Fits Chest Size
Noise Reduction

Details

Frame Finish
Zinc Plated
Caster Brake Included
Yes
Wheel Color
Black
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Includes
Complete Caster with Directional Lock
Extended Lead
No
Standards
ANSI ICWM
Non-Marking
No
Core Color
Silver
Item
Plate Caster
Caster Brake Type
Directional Lock, Side Brake
Number of Wheels
1
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Thread Guards
No
Load Rating
410 lb
Caster Frame Material
Steel
Features
Noise Reduction
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
A
Replacement Wheel
Mfr. No. P-RY-060x020/050R
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Material
Iron
Tread Shape
Standard
Wheel Bearing Type
Roller
Swivel Lock Type
4-Position Directional Lock
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Medium Duty
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread
Standard
Caster Mounting Type
Plate
Load Capacity
550 lb
ESD Conductive
No
Tread Color
Black
Series
P21 Series
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
500 lb
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Spoke
Mounting Hole Type
Slot
Brake Location
Side
Wheel Bearing Material
Steel
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 410 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
