  11. Plate Caster, 2500 lb. Ld Rating, Ball

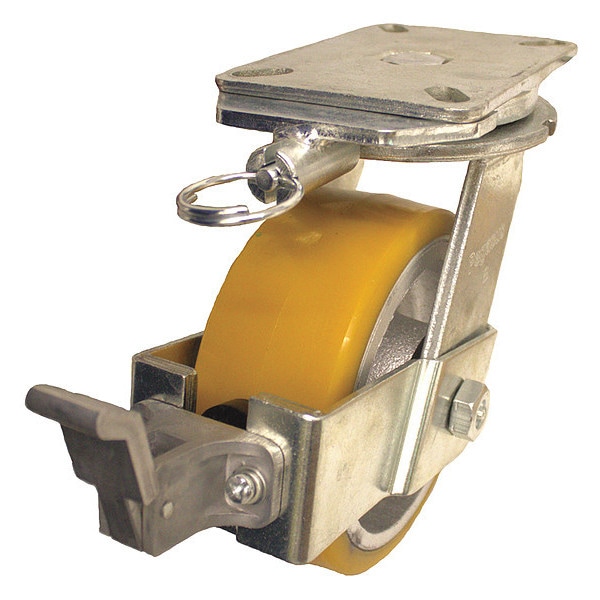

Zoro Select Plate Caster, 2500 lb. Ld Rating, Ball P29S-UY080K-18-WK-DL - main

Plate Caster, 2500 lb. Ld Rating, Ball

  • Mfr # P29S-UY080K-18-WK-DL

  • Zoro # G1199394

product price: $256.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P29S-UY080K-18-WK-DL
Zoro #
G1199394
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/2 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
7 in
Overall Height
10-1/2in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
5 1/4 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
4.125 in
Overall Wheel Width
3 in
Inside Slot Spacing - Length
5.25 in

Details

Item
Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, No Brake
Load Rating
2500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Features
Floor Protective
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. P-UY-080x030/075K
Caster Temp. Range Available
Yes
Wheel Color
Yellow
Thread Guards
No
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Extended Lead
No
Includes
Trailing End Brake, 4-Position Directional Lock
Load Rating Range
Heavy Duty
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Lock Type
4-Position Directional Lock
Series
P29 Series
ESD Conductive
No
Tread Color
Yellow
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
2500 lb
Load Capacity - Maximum
2,500 lb
Compatible With
P-UY-080X030/075K
Brake Location
Rear
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, No Brake, Tread Shape Standard
