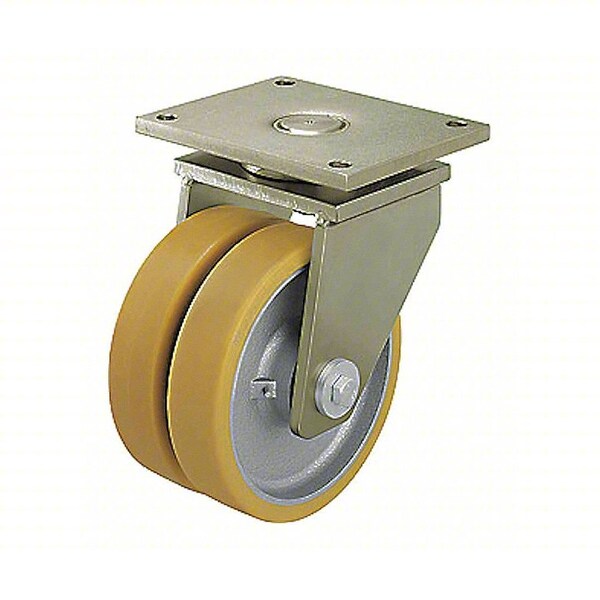

Zoro Select Plate Caster, 2975 lb. Load Rating LSD-GTH 150K-35 - main

Plate Caster, 2975 lb. Load Rating

  • Mfr # LSD-GTH 150K-35

  • Zoro # G8241170

product price:  $454.99
/ea
Free Shipping & Returns

Key Features

Mounting Plate Size
5 1/2 in x 6 7/8 in
Swivel Radius
5 1/2 in
Wheel/Tread Color
Yellow
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LSD-GTH 150K-35
Zoro #
G8241170
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Plate Size
5 1/2 in x 6 7/8 in
Swivel Radius
5 1/2 in
Overall Height
8-15/32in
Mounting Height
8 7/16 in
Mounting Bolt Dia.
9/16 in
Wheel Dia.
6 in
Wheel Width
2 in
Bolt Hole Spacing - Width
4.125 in
For Axle Dia.
10 mm
Mounting Plate Thickness
3/8 in
Bolt Hole Spacing - Length
5.5 in
Mounting Plate Length
5 1/2 in
Overall Wheel Width
2 in

Details

Wheel/Tread Color
Yellow
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
System of Measurement
Inch
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Item
Plate Caster
Wheel Color
Yellow
Wheel/Tread Hardness Rating
Firm
Features
Floor Protective, Reduced Swivel Forces
Load Rating
2975 lb
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Outside Bolt Hole Spacing
4-1/8 in x 5-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 5-1/2 in
Caster Frame Material
Steel
Caster Brake Type
No Brake
Non-Marking
Yes
Caster Temp. Range Available
Yes
Caster Brake Included
No
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Thread Guards
No
Replacement Wheel
Mfr. No. GTH 150/20K
Standards
DIN EN 12533
Core Color
Silver
Wheel Bearing Type
Ball
Load Rating Range
1000 to 2999 lb
Number of Wheels
2
Wheel Core Material
Iron
Extended Lead
No
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Caster Plate Hole Pattern
D
Load Capacity - Maximum
3,085 lb
Compatible With
GTH 150/20K
Wheel Hardness Rating
92 Shore A
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 2975 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
