  11. Plate Caster, 3-1/2" Wheel Dia., 275 lb.
Zoro Select Plate Caster, 3-1/2" Wheel Dia., 275 lb. 435X80 - main

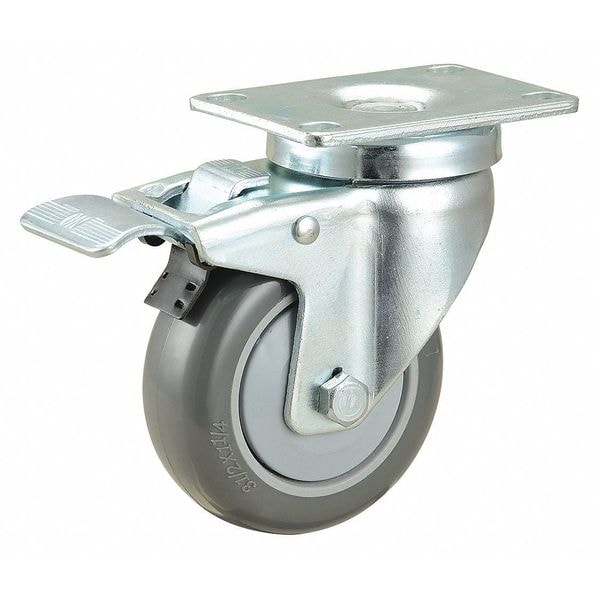

Plate Caster, 3-1/2" Wheel Dia., 275 lb.

  • Mfr # 435X80

  • Zoro # G6874922

product price: $9.89
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
435X80
Zoro #
G6874922
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 1/2 in
Wheel Width
1 1/4 in
Mounting Height
4 11/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Overall Height
4-11/16in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Load Rating
275 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Standards
ANSI, ANSI ICWM
Wheel Color
Gray
Application
General Purpose
Frame Finish
Zinc Plated
Thread Guards
Yes
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
No
Caster Brake Included
Yes
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polyolefin
Load Rating Range
0 to 299 lb
Includes Thread Guards
Yes
Swivel Construction
Kingpin
Swivel Lock Type
Total Lock
Swivel Raceway Type
Double Ball
Load Capacity - Maximum
275 lb
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 275 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
