  11. Plate Caster, 3-1/2" Wheel Dia., 275 lb.
Shop All Plate Casters
Zoro Select

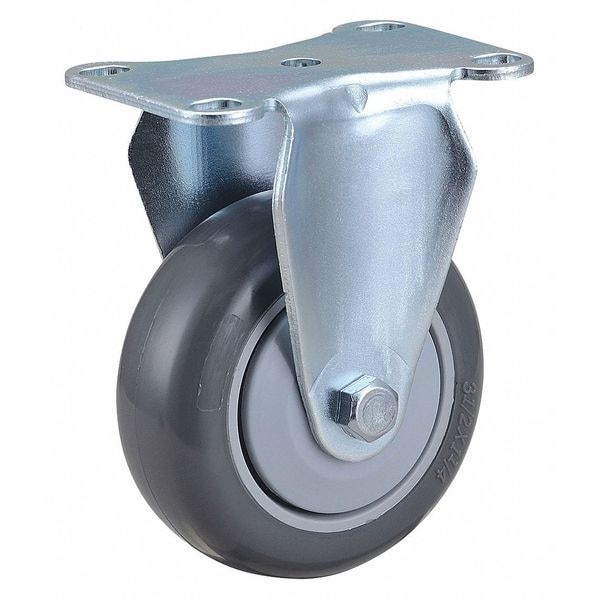

Plate Caster, 3-1/2" Wheel Dia., 275 lb.

product price: $6.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Rigid
  • Caster Wheel Shape Crown
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 4-11/16"
Wheel Dia. 3 1/2 in
Wheel Width 1 1/4 in
Plate Size 2-1/2" x 3-5/8"
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-1/2" x 3-5/8"
Mounting Height 4 11/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Rigid
Caster Wheel Shape Crown
Caster Wheel/Tread Material Polyurethane
Load Rating 275 lb
Number of Wheels 1
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Caster Max. Temp. 175 Degrees F
Caster Temp. Range -40 Degrees to 175 Degrees F
Plate Caster Bolt Hole Pattern C
Caster Core Material Polyolefin
Item Debris-Resistant Standard Plate Caster
Caster Frame Material Steel
Extended Lead No
Caster Plate Thickness 5/32"
Frame Finish Zinc Plated
Caster Product Group Rigid Caster
Caster Wheel Bearings Ball
Caster Swivel Lock Type No Lock Included
Core Color Gray
Caster Temp. Range Available No
Thread Guards Yes
Standards ANSI/ICWM
Application General Purpose
Plate Thickness 5/32"
Durometer 95 Shore A
Caster Plate Hole Pattern C
Caster Min. Temp. -40 Degrees F
Frame Material Steel
Non-Marking Yes
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Wheel Color Gray
Caster Brake Type No Brake Included
Wheel/Tread Hardness Rating Firm
Swivel Construction Kingpinless
Wheel Core Material Plastic
Mounting Plate Bolt Hole Pattern C
Number of Mounting Holes 4
Wheel/Tread Hardness 95 Shore A
Includes Thread Guards Yes
Load Rating Range 0 to 299 lb
Wheel Bearing Type Precision Ball
Tread Shape Standard
Swivel Lock Type No Lock Included
Wheel/Tread Material Polyurethane
Wheel/Tread Color Gray

Description

Rigid, Debris-Resistant Standard Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
