  6. Swivel Plate Caster, Nylon, 3-1/8 in., 330 lb

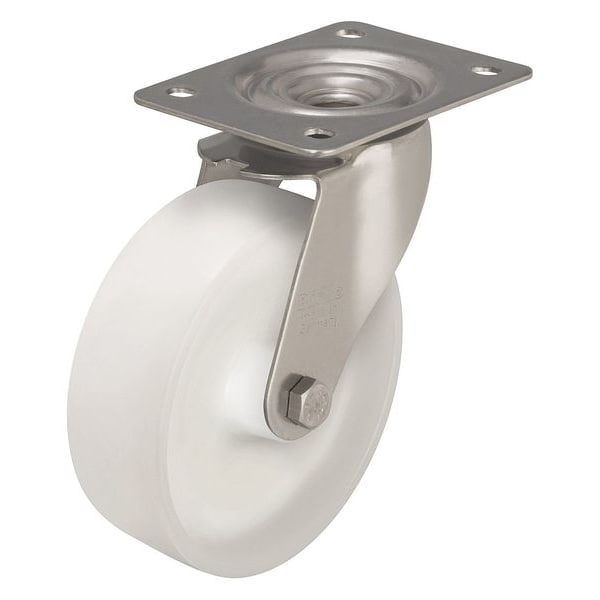

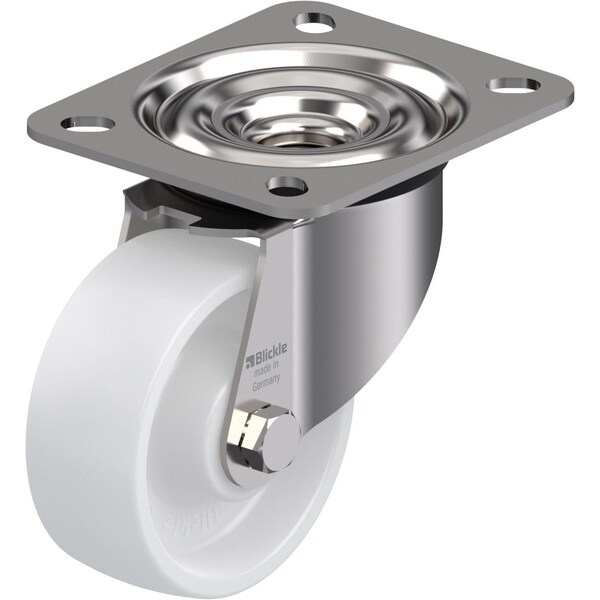

Zoro Select Swivel Plate Caster, Nylon, 3-1/8 in., 330 lb LEX-PO 80XR - main

Swivel Plate Caster, Nylon, 3-1/8 in., 330 lb

  • Mfr # LEX-PO 80XR

  • Zoro # G1618690

product price:  $46.49
/ea

Key Features

Wheel Dia.
3 1/8 in
Caster Frame Material
Stainless Steel
Caster Temp. Range Available
No
Caster Brake Included
No
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LEX-PO 80XR
Zoro #
G1618690
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 1/8 in
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
4in
Stem Dia.
No Stem
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Height
4 in
Swivel Radius
78 mm
Mounting Plate Length
3 3/8 in
Overall Wheel Width
1 1/4 in
Mounting Plate Thickness
7/64in
For Axle Dia.
8 mm
Bolt Hole Spacing - Length
3.156 in
Bolt Hole Spacing - Width
2.375 in

Details

Caster Frame Material
Stainless Steel
Item
Swivel Caster
Caster Temp. Range Available
No
Caster Brake Included
No
Number of Wheels
1
Wheel Color
White
Standards
DIN EN 12574, ISO 14001, ISO 5001, ISO 9001
Caster Plate Hole Pattern
A
Frame Finish
Stainless Steel
Core Color
White
Inside Bolt Hole Spacing
60 mm x 80 mm
Load Rating
330 lb
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Outside Bolt Hole Spacing
60 mm x 80 mm
Extended Lead
No
Application
Food Service, Medical and Institutional Equipment
Thread Guards
No
Features
Corrosion Resistant
Replacement Wheel
Mfr. No. PO 80/12XR
Non-Marking
Yes
System of Measurement
Metric
Tread
Standard
Tread Color
White
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Wheel Core Material
Nylon
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LEX Series
ESD Conductive
No
Load Capacity
150 kg
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
330 lb
Compatible With
PO 80/12XR
Wheel Hardness Rating
70 Shore D
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/8 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
