  11. Plate Caster, 300 lb. Load Rate, 7-1/4" H

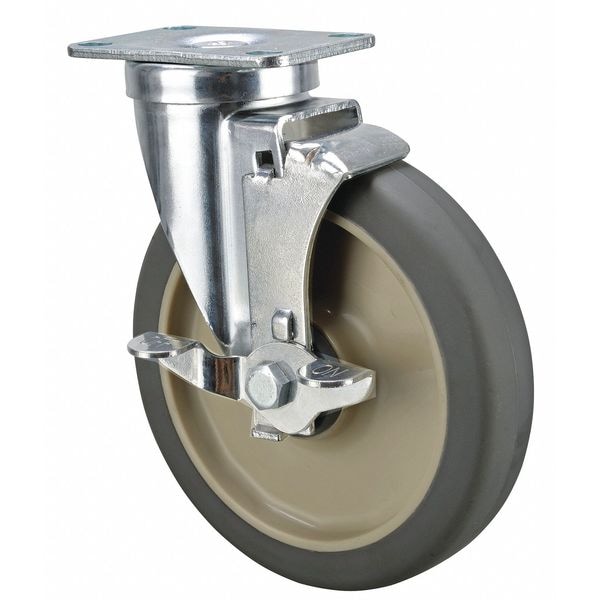

Zoro Select Plate Caster, 300 lb. Load Rate, 7-1/4" H P12S-PRP060K-12-WB - main

Plate Caster, 300 lb. Load Rate, 7-1/4" H

  • Mfr # P12S-PRP060K-12-WB

  • Zoro # G6876532

product price: $27.39
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-PRP060K-12-WB
Zoro #
G6876532
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/4 in
Mounting Height
7 1/4 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
7-1/4in
Swivel Radius
4-1/2 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-15/16 in
Caster Plate Hole Pattern
C
Caster Stem Type
No Stem/Plate Included
Thread Guards
Yes
Extended Lead
No
Wheel Color
Gray
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM, NSF
Includes
Thread Guards, Strap Type Brake
Replacement Wheel
Mfr. No. P-PRP-060x013/038K
Swivel Construction
Kingpin
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Light-Medium Duty
Includes Thread Guards
Yes
Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
ESD Conductive
No
Load Capacity
325 lb
Series
P12 Series
Load Capacity - Maximum
350 lb
Brake Location
Side
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
