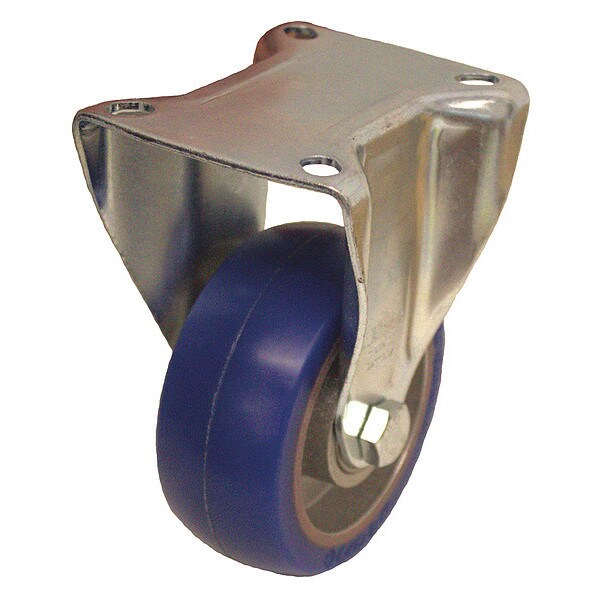

Zoro Select Plate Caster, 660 lb. Ld Rating, Ball BK-ALBS 100K-1 - main

Plate Caster, 660 lb. Ld Rating, Ball

  • Mfr # BK-ALBS 100K-1

  • Zoro # G7279008

product price:  $57.65
/ea

Key Features

Frame Finish
Zinc Plated
Load Rating
660 lb
Non-Marking
Yes
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
D
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BK-ALBS 100K-1
Zoro #
G7279008
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1 9/16 in
Swivel Radius
None- Rigid Caster
Mounting Bolt Dia.
9 mm
Wheel Dia.
4 in
Overall Height
5-1/8in
Mounting Plate Size
85 mm x 100 mm
Mounting Height
5 1/8 in
Mounting Plate Length
3 15/16 in
Bolt Hole Spacing - Width
2.375 in
Overall Wheel Width
1 9/16 in
Mounting Plate Width
3 3/8 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Length
3.156 in
Mounting Plate Thickness
2.5 mm

Details

Frame Finish
Zinc Plated
Load Rating
660 lb
Non-Marking
Yes
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
D
Standards
DIN EN 12532, ANSI ICWM
Thread Guards
No
Caster Brake Included
No
Core Color
Silver
Caster Sub-Type
Rigid
Extended Lead
No
Outside Bolt Hole Spacing
60 mm x 80 mm
Features
Floor Protective, Reduced Swivel Forces
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Frame Material
Steel
Wheel Color
Blue
Number of Wheels
1
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. ALBS 100/15K
Item
Rigid Caster
Caster Brake Type
No Brake
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Soft
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Aluminum
Tread Shape
Crown
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Besthane Soft Polyurethane
Wheel/Tread Color
Blue
System of Measurement
Metric
Load Capacity
300 kg
Caster Mounting Type
Plate
ESD Conductive
No
Tread Color
Blue
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Series
BK Series
Load Capacity - Maximum
705 lb
Wheel Hardness Rating
75 Shore A
Compatible With
ALBS 100/15K
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
