  11. Plate Caster, 3000 lb. Ld Rating, Wt Wheel

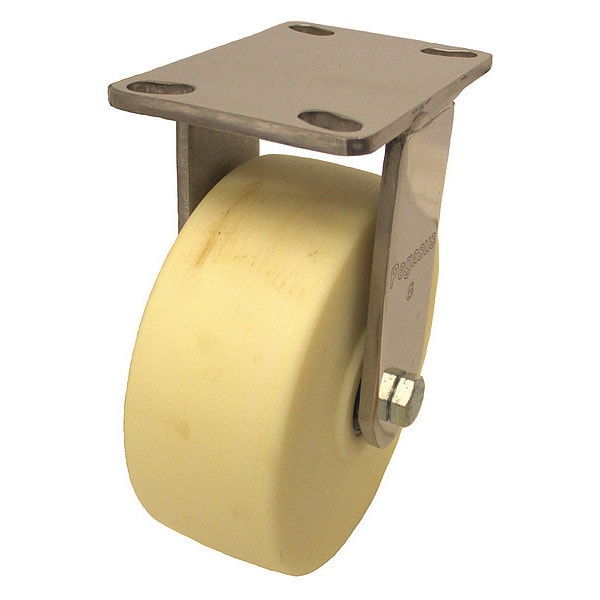

Zoro Select Plate Caster, 3000 lb. Ld Rating, Wt Wheel P27RX-N080K-16 - main

Plate Caster, 3000 lb. Ld Rating, Wt Wheel

  • Mfr # P27RX-N080K-16

  • Zoro # G6535011

product price: $190.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27RX-N080K-16
Zoro #
G6535011
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
None- Rigid Caster
Overall Height
10-1/8in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
3/4 in
Mounting Plate Length
4 1/2 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
2.438 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
3000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
White
Wheel Hardness Rating
75 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Extended Lead
No
Frame Finish
Polished
Caster Brake Included
No
Wheel Color
White
Standards
RoHS, ICWM
Thread Guards
No
Includes
Complete Caster
Features
Corrosion Resistance, Push/Pull Force Reduction
Application
Retail, Industrial, Commercial, Corrosion Resistance
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-N-080x030/075K
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Heavy-Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Operating Temperature Range
-40 Degrees to 180 Degrees F
Series
P27X Series
Tread Color
White
ESD Conductive
No
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
6170 lb
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
3,000 lb
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot

Description

Rigid, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
