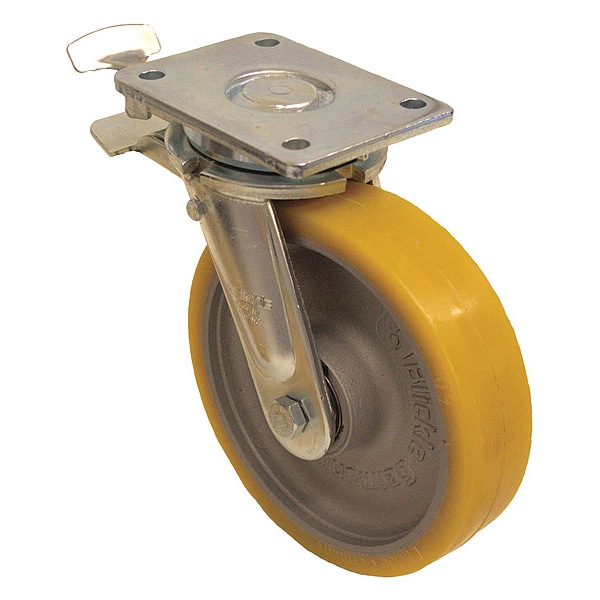

Zoro Select Plate Caster, 2200 lb. Ld Rating, Ball LO-GTH 200K-ST-RI4 - main

Plate Caster, 2200 lb. Ld Rating, Ball

  • Mfr # LO-GTH 200K-ST-RI4

  • Zoro # G7278667

product price:  $378.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
8 in
Swivel Radius
6 1/4 in
Standards
DIN EN 12533, ANSI ICWM
Caster Brake Type
Total Lock
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LO-GTH 200K-ST-RI4
Zoro #
G7278667
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Swivel Radius
6 1/4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-21/32in
Mounting Height
9 5/8 in
Mounting Plate Size
110 mm x 140 mm
Inside Slot Spacing - Width
2.969 in
Mounting Plate Length
4 5/16 in
Mounting Plate Thickness
8 mm
For Axle Dia.
12 mm
Inside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in

Details

Item
Swivel Caster With Brake And Directional-Lock
Standards
DIN EN 12533, ANSI ICWM
Caster Brake Type
Total Lock
Number of Wheels
1
Non-Marking
Yes
Features
Floor Protective
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Load Rating
2200 lb
Replacement Wheel
Mfr. No. GTH 200/20K
Caster Brake Included
Yes
Caster Frame Material
Steel
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Wheel Color
Yellow
Extended Lead
No
Outside Bolt Hole Spacing
80 mm x 105 mm
Thread Guards
No
Core Color
Gray
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Includes
Stop-Top Total-Lock Brake, 4-Position Directional Lock
Number of Mounting Holes
4
Wheel Bearing Type
Precision Ball
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Swivel Raceway Type
Double Ball
Swivel Lock Type
4-Position Directional Lock
Tread Shape
Standard
Swivel Construction
Kingpin
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Extrathane Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Metric
ESD Conductive
No
Load Capacity
1000 kg
Caster Mounting Type
Plate
Tread Color
Light Brown
Series
LO Series
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
2,205 lb
Compatible With
GTH 200/20K
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Brake Location
Face
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 2200 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
