  11. Plate Caster, 3085 lb. Load Rating
Zoro Select Plate Caster, 3085 lb. Load Rating BS-GST 252K - main

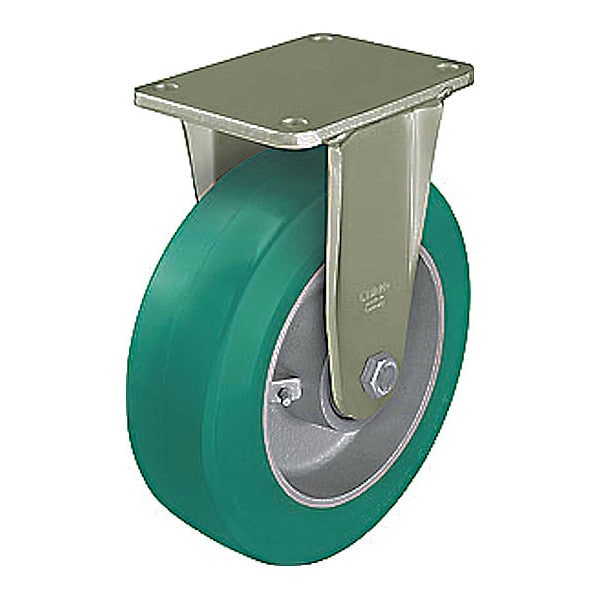

Plate Caster, 3085 lb. Load Rating

  • Mfr # BS-GST 252K

  • Zoro # G8517910

product price: $295.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Softhane Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BS-GST 252K
Zoro #
G8517910
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
10 in
Wheel Width
3 1/8 in
Mounting Height
12 in
Mounting Plate Size
140 mm x 175 mm
Mounting Plate Thickness
10 mm
Mounting Bolt Dia.
9/16 in
Overall Height
12in
Swivel Radius
None- Rigid Caster
Bolt Hole Spacing - Width
4.125 in
Bolt Hole Spacing - Length
5.5 in
For Axle Dia.
16 mm
Mounting Plate Length
5 1/2 in
Overall Wheel Width
3 1/8 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Softhane Polyurethane
Caster Brake Type
No Brake
Load Rating
3075 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
105 mm x 140 mm
Inside Bolt Hole Spacing
105 mm x 140 mm
Caster Plate Hole Pattern
D
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Thread Guards
No
Standards
RoHS, ICWM
Extended Lead
No
Replacement Wheel
Mfr. No. GST 252/25K
Caster Brake Included
No
Caster Temp. Range Available
Yes
Features
Floor Protective, Reduced Push/Pull Force
Wheel Color
Yellow
Frame Finish
Zinc Plated
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Extra-Heavy Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Tread Color
Green
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1400 kg
Series
BS Series
ESD Conductive
No
Tread
Standard
Compatible With
GST 252/25K
Load Capacity - Maximum
3,085 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 3075 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 1/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
