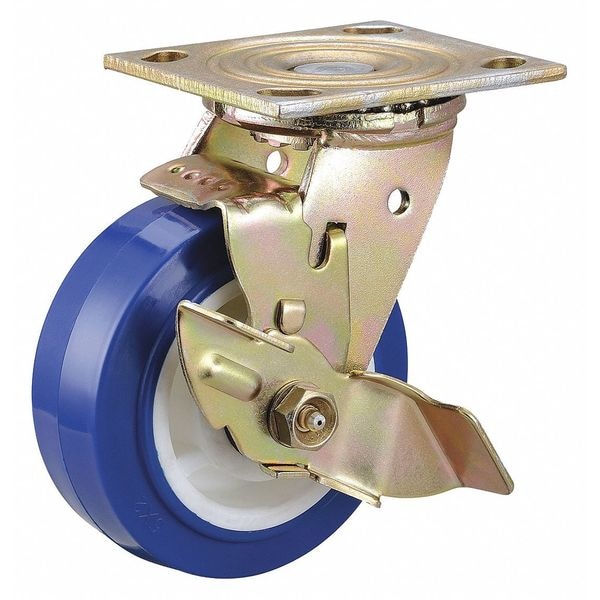

Plate Caster, 750 lb. Load Rating, Swivel

product price: $17.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 6-1/2"
Wheel Dia. 5 in
Wheel Width 2 in
Stem Dia. No Stem
Swivel Radius 4 1/4 in
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Mounting Height 6 1/2 in
Mounting Plate Size 4 in x 4 1/2 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 750 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Item Standard Plate Caster
Application General Purpose
Caster Plate Thickness 7/32"
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Wheel Color Blue
Thread Guards No
Plate Caster Bolt Hole Pattern B
Caster Raceway Double Ball
Replacement Wheel 1NUX2
Caster Min. Temp. -40 Degrees F
Frame Finish Zinc Chromate
Caster Temp. Range Available Yes
Inside Bolt Hole Spacing 3 in x 3 in
Durometer 95 Shore A
Caster Product Group Swivel Caster with Brake
Caster Wheel Bearings Roller
Non-Marking Yes
Caster Brake Type Side Pedal Brake
Caster Swivel Lock Type No Lock Included
Caster Max. Temp. 175 Degrees F
Caster Plate Hole Pattern B
Caster Core Material Polyolefin
Core Color White
Extended Lead No
Caster Frame Material Steel
Wheel/Tread Hardness 95 Shore A
Mounting Plate Bolt Hole Pattern B
Swivel Lock Type No Lock Included
Swivel Construction Kingpin
Includes Thread Guards No
Swivel Raceway Type Double Ball
Wheel/Tread Hardness Rating Firm
Tread Shape Standard
Number of Mounting Holes 4
Wheel Core Material Plastic
Load Rating Range 300 to 999 lb
Wheel Bearing Type Roller
Wheel/Tread Material Polyurethane
Wheel/Tread Color Blue

Description

Swivel, Standard Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Pedal Brake, Tread Shape Standard
