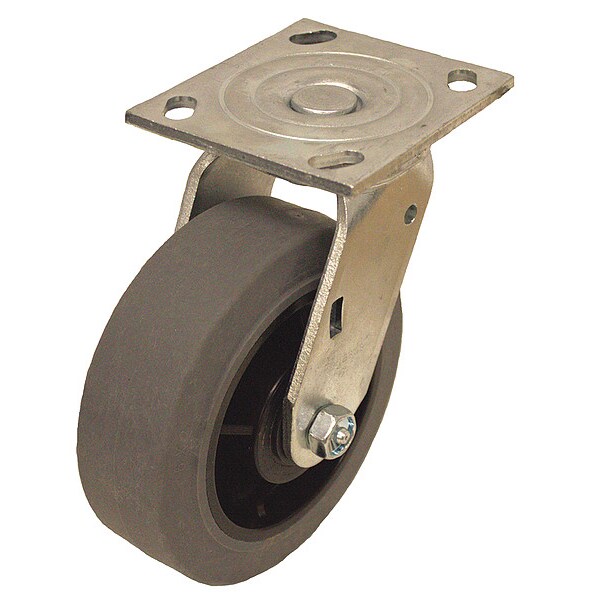

Zoro Select Plate Caster, 350 lb. Ld Rating, Roller P21S-PRP050R-14-EL - main

Plate Caster, 350 lb. Ld Rating, Roller

  • Mfr # P21S-PRP050R-14-EL

  • Zoro # G3317388

product price:  $33.39
/ea

Key Features

Overall Height
6-1/2in
Wheel Core Material
Polypropylene
Mounting Plate Size
4 in x 4-1/2 in
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PRP050R-14-EL
Zoro #
G3317388
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-1/2in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
6 1/2 in
Wheel Dia.
5 in
Swivel Radius
4 1/4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Mounting Plate Thickness
0.236 in
Mounting Plate Length
4 in

Details

Wheel Core Material
Polypropylene
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Load Rating Range
Medium Duty
Tread Shape
Standard
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
No
Non-Marking
Yes
Load Capacity
350 lb
Number of Wheels
1
Core Color
Gray
Series
P21 Series
Replacement Wheel
Mfr. No. P-RP-050x020/050R-EL
Accessories
Optional: P-DL21-14 (Directional Lock)
Caster Mounting Type
Plate
Tread Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Item
Swivel Caster
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes
Electrically Conductive Tread
ESD Conductive
Yes
Tread
Standard
Extended Lead
No
Caster Plate Hole Pattern
B
Features
Electrically Conductive, Floor Protective, Noise Reduction
Caster Brake Type
No Brake
Caster Frame Material
Steel
Thread Guards
No
Standards
ANSI ICWM, NSF Listed
System of Measurement
Inch
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Color
Gray
Load Rating
350 lb
Compatible With
P-RP-050X020/050R-EL
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
350 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Debris-Resistant
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
