Shop All Plate Casters
Zoro Select

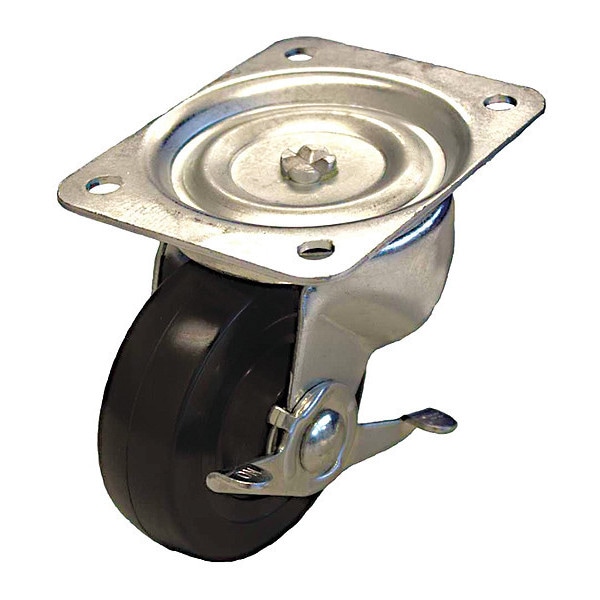

Plate Caster, 250 lb. Load Rating, Swivel

product price: $12.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Solid Rubber
See all product information

Product Information

Dimensions

Overall Height 5 in
Wheel Dia. 4 in
Wheel Width 1-3/8 in
Stem Dia. No Stem
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4 in x 5-1/8 in
Swivel Radius 5-7/16 in
Mounting Plate Size 4 in x 5 1/8 in
Mounting Height 5 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Solid Rubber
Load Rating 250 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Temp. Range Available Yes
Item Swivel Plate Caster With Brake
Caster Brake Type Side Pedal Brake
Caster Wheel Bearings Plain
Plate Caster Bolt Hole Pattern D
Caster Core Material Rubber
Frame Finish Zinc Plated
Core Color Black
Caster Frame Material Steel
Non-Marking No
Caster Plate Hole Pattern D
Caster Swivel Lock Type No Lock Included
Caster Min. Temp. -15 Degrees F
Caster Product Group Swivel Caster With Brake
Inside Bolt Hole Spacing 3 in x 4 in
Caster Plate Thickness 0.079 in
Caster Max. Temp. 160 Degrees F
Durometer 80 Shore A
Thread Guards No
Outside Bolt Hole Spacing 3 in x 4 in
Features Noise Reduction
Extended Lead No
Application Retail, Industrial, Commercial
Caster Raceway Single Ball
Standards RoHS, ICWM
Wheel Color Black
Includes Pinch Type Brake
Caster Temp. Range -20 Degrees To 125 Degrees F
Swivel Lock Type No Lock Included
Mounting Plate Bolt Hole Pattern D
Number of Mounting Holes 4
Wheel Bearing Type Plain
Wheel Core Material Hard Rubber
Swivel Raceway Type Double Ball
Wheel/Tread Hardness 70-85 Shore A
Tread Shape Standard
Swivel Construction Kingpin
Operating Temperature Range -15 Degrees to 160 Degrees F
Includes Thread Guards No
Wheel/Tread Hardness Rating Soft
Wheel/Tread Material Rubber
Wheel/Tread Color Black
System of Measurement Inch
Tread Standard
ESD Conductive No
Tread Color Black
Series P2 Series
Load Capacity 250 lb
Resistant To Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Mounting Type Plate
Caster Break Type Pinch Type

Description

Swivel, Standard Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 3/8 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Pedal Brake, Tread Shape Standard
