  6. Plate Caster, 410 lb. Load, Black Wheel

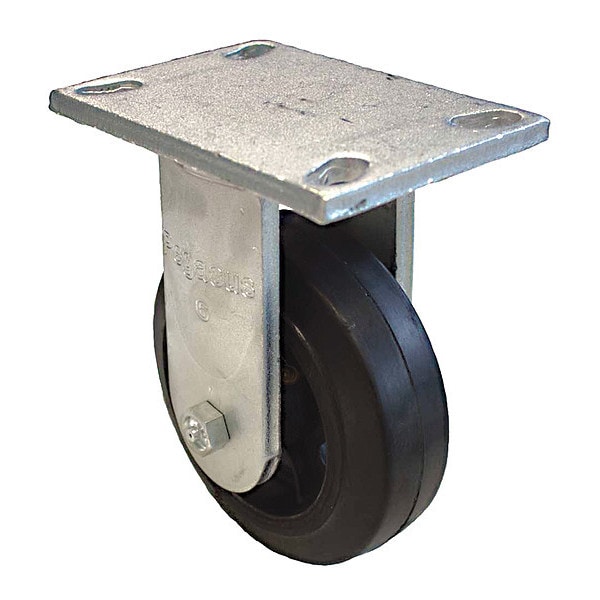

Zoro Select Plate Caster, 410 lb. Load, Black Wheel P21R-RY060R-16 - main

Plate Caster, 410 lb. Load, Black Wheel

  • Mfr # P21R-RY060R-16

  • Zoro # G6541619

product price:  $29.49
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
No Brake
Load Rating
410 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P21R-RY060R-16
Zoro #
G6541619
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Wheel Dia.
6 in
Overall Height
7-1/2in
Mounting Height
7 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Length
6 1/4 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
Bolt Hole Spacing - Length
2.438 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
5.25 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3.375 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
No Brake
Load Rating
410 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Number of Wheels
1
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Features
Noise Reduction
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Frame Finish
Zinc Plated
Wheel Color
Black
Non-Marking
No
Extended Lead
No
Standards
ANSI ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Thread Guards
No
Includes
Complete Caster
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-RY-060x020/050R
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Load Rating Range
Medium Duty
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Color
Black
Load Capacity
550 lb
ESD Conductive
No
Tread Color
Black
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread
Standard
Series
P21 Series
Load Capacity - Maximum
550 lb
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Spoke
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 410 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
