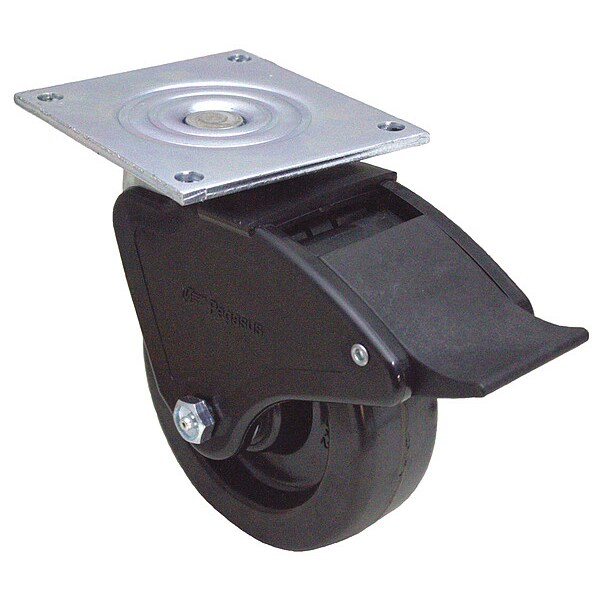

Plate Caster, Swivel, Phenolic, 7 1/2"H

  • Mfr # P21S-PH060R-15-TBF

  • Zoro # G7239663

product price:  $288.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Number of Mounting Holes
4
Series
Pegasus 21 Series
Load Rating Range
1000 to 2999 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PH060R-15-TBF
Zoro #
G7239663
UPC #
-
Country of Origin
China

Dimensions

Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
7/32 in
Swivel Radius
6 in
Overall Height
7-1/2"
Mounting Plate Size
5 in x 5 1/2 in
Wheel Dia.
6 in
Hub Length
2 3/16 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Bolt Hole Spacing - Width
4.125 in
Bolt Hole Spacing - Length
4.5 in
Mounting Plate Length
5 in

Details

System of Measurement
Inch
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Number of Mounting Holes
4
Series
Pegasus 21 Series
Load Rating Range
1000 to 2999 lb
Caster Mounting Type
Plate
Wheel/Tread Hardness Rating
Hard
Frame Finish
Zinc Plated
Includes Mounting Fasteners
No
Standards
ANSI ICWM
Swivel Bearing Seal Type
Open
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Sub-Type
Swivel
Number of Wheels
1
Swivel Lead
1 13/16 in
Caster Plate Hole Pattern
D
NSF Listed
No
Wheel Core Type
Solid
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Operating Temperature Range
-20 Degrees to 250 Degrees F
Frame Construction
Stamped
Non-Marking
Yes
Load Rating
1200 lb
Item
Plate Caster
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Swivel Lock Type
Total Lock
Includes Spanner Bushing
Yes
Wheel/Tread Material
Phenolic
Wheel Bearing Type
Roller
Tread Shape
Standard
With Toe Plate
No
Wheel Core Material
Phenolic
Wheel/Tread Color
Black
Wheel Bearing Material
Steel
Frame Color
Silver
Caster Brake Type
Total Lock
Brake Location
Rear
Compatible With
55KC04, 55KC06
Includes Thread Guards
No
Swivel Construction
Kingpin
Core Color
Black
Swivel Raceway Type
Double Ball
Features
Low Rolling Resistance
Caster Frame Material
Steel
ESD Conductive
No
Replacement Wheel
490V95
Load Capacity - Maximum
1,200 lb
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
102 HRE

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
