  11. Plate Caster, 5" Wheel Dia., 200 lb. Load

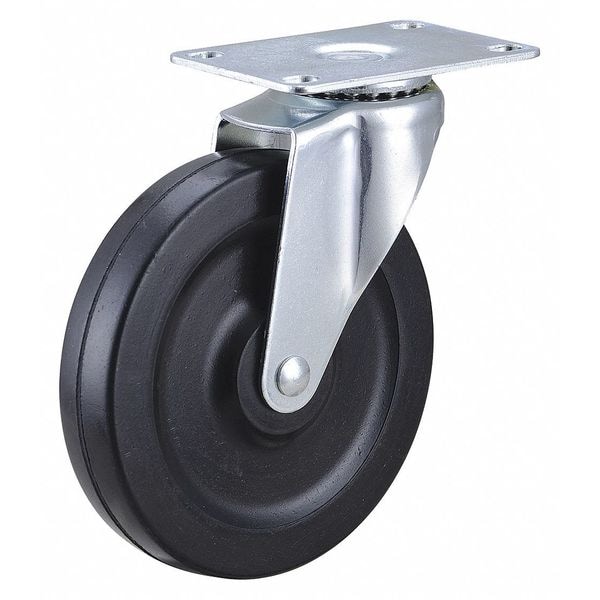

Zoro Select Plate Caster, 5" Wheel Dia., 200 lb. Load 437V26 - main

Plate Caster, 5" Wheel Dia., 200 lb. Load

  • Mfr # 437V26

  • Zoro # G4016463

product price: $12.45
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
437V26
Zoro #
G4016463
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 in
Mounting Height
5 7/8 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
3/32in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Swivel Radius
4 in
Overall Height
5-7/8in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
200 lb
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Frame Finish
Zinc Plated
Standards
ANSI, ANSI ICWM
Thread Guards
No
Caster Brake Included
No
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Application
Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment
Wheel Color
Black
Caster Temp. Range Available
Yes
Wheel Core Material
Rubber
Load Rating Range
0 to 299 lb
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Load Capacity - Maximum
200 lb
Operating Temperature - Maximum
155 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 158 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
