  11. Plate Caster, 6" Wheel Dia., 250 lb. Load
Zoro Select Plate Caster, 6" Wheel Dia., 250 lb. Load MT1HV11DC - main

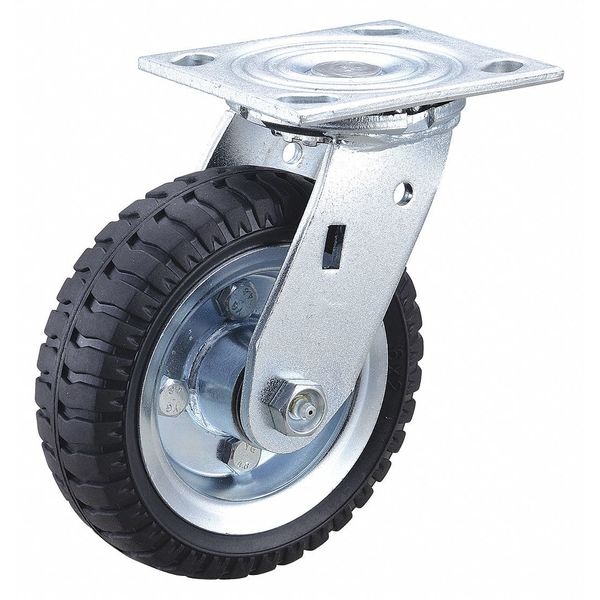

Plate Caster, 6" Wheel Dia., 250 lb. Load

  • Mfr # MT1HV11DC

  • Zoro # G4016667

product price: $67.39
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MT1HV11DC
Zoro #
G4016667
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/4 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
7/32in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/4in
Swivel Radius
4 7/8 in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
250 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Application
All Purpose Industrial and Commercial Casters
Wheel Color
Black
Thread Guards
No
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Standards
ANSI, ANSI ICWM
Frame Finish
Zinc Plated
Caster Brake Included
No
Tread
Centipede
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Load Rating Range
0 to 299 lb
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Load Capacity - Maximum
250 lb
Operating Temperature Range
-40 Degrees to 158 Degrees F
Operating Temperature - Maximum
155 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
