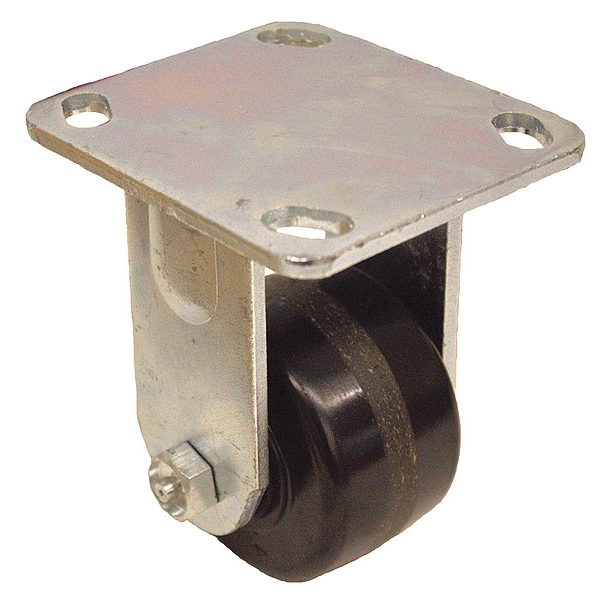

Zoro Select Plate Caster, 700 lb. Load Rating P21R-PH033R-14 - main

Plate Caster, 700 lb. Load Rating

  • Mfr # P21R-PH033R-14

  • Zoro # G1617653

product price:  $18.55
/ea

Key Features

Frame Finish
Zinc Plated
Mounting Bolt Dia.
3/8 in
Non-Marking
Yes
Swivel Radius
None- Rigid Caster
Extended Lead
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-PH033R-14
Zoro #
G1617653
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Wheel Dia.
3 1/4 in
Overall Height
5-1/4in
Wheel Width
2 in
Mounting Height
5 1/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in

Details

Frame Finish
Zinc Plated
Non-Marking
Yes
Extended Lead
No
Item
Rigid Caster
Load Rating
700 lb
Standards
DIN EN 12532
Caster Frame Material
Steel
Features
Push/Pull Force Reduction
System of Measurement
Inch
Inside Bolt Hole Spacing
3 in x 3 in
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Number of Wheels
1
Wheel Color
Black
Caster Temp. Range Available
Yes
Core Color
Black
Caster Brake Type
No Brake
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Sub-Type
Rigid
Replacement Wheel
Mfr. No. P-PH-033x020/050R-001
Thread Guards
No
Caster Brake Included
No
Number of Mounting Holes
4
Wheel/Tread Material
Phenolic
Load Rating Range
Medium Duty
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Wheel Core Material
Phenolic
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Series
P21 Series
Caster Mounting Type
Plate
Tread Color
Black
Tread
Standard
Load Capacity
700 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
700 lb
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Wheel Hardness Rating
102 HRE
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F

Description

Rigid, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
