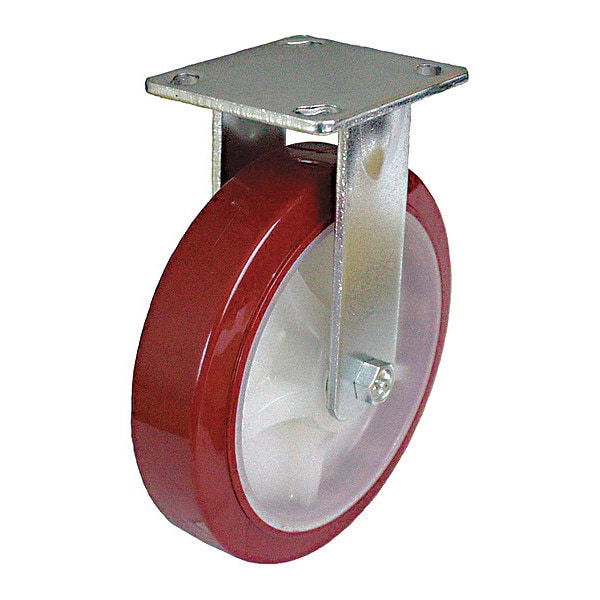

Zoro Select Plate Caster, 770 lb. Load, Red Weel P25R-URPW060K-14 - main

Plate Caster, 770 lb. Load, Red Weel

  • Mfr # P25R-URPW060K-14

  • Zoro # G5616517

product price:  $35.99
/ea

Key Features

Wheel Width
2 in
Load Rating
770 lb
Caster Frame Material
Steel
Inside Bolt Hole Spacing
3 in x 3 in
Swivel Radius
None- Rigid Caster
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25R-URPW060K-14
Zoro #
G5616517
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Swivel Radius
None- Rigid Caster
Overall Height
7-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Mounting Plate Thickness
15/64in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in

Details

Load Rating
770 lb
Caster Frame Material
Steel
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
No Brake
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Color
Red
Non-Marking
Yes
Includes
Complete Caster
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Core Color
White
Extended Lead
No
Features
Floor Protective
Replacement Wheel
Blickle Series
Number of Wheels
1
Standards
ANSI ICWM
Caster Plate Hole Pattern
B
Caster Brake Included
No
Item
Rigid Caster
Thread Guards
No
Frame Finish
Zinc Plated
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Ball
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polypropylene
Wheel/Tread Material
Polyurethane
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Color
Red
System of Measurement
Inch
ESD Conductive
No
Series
P25 Series
Tread Color
Red
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Caster Mounting Type
Plate
Load Capacity
770 lb
Load Capacity - Maximum
770 lb
Compatible With
Blickle Series
Wheel Hardness Rating
55 Shore D
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
