  10. /
  11. Plate Caster, 8" Wheel Dia., 600 lb., Gray
Shop All Plate Casters
Zoro Select

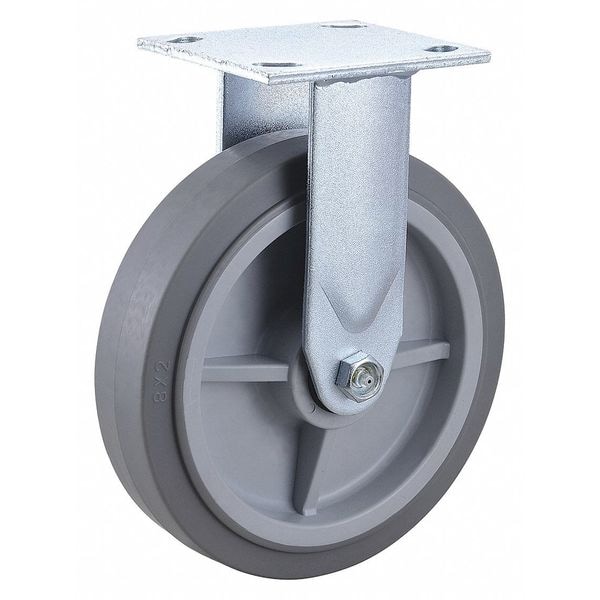

Plate Caster, 8" Wheel Dia., 600 lb., Gray

product price: $17.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Rigid
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 9-1/2"
Wheel Dia. 8 in
Wheel Width 2 in
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Plate Size 4" x 4-1/2"
Mounting Plate Size 4 in x 4 1/2 in
Mounting Height 9 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Rigid
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 600 lb
Number of Wheels 1
Frame Finish Zinc Plated
Application General Purpose
Thread Guards No
Caster Plate Thickness 7/32"
Extended Lead No
Caster Swivel Lock Type No Lock Included
Caster Plate Hole Pattern B
Standards ANSI/ICWM
Caster Core Material Polyolefin
Inside Bolt Hole Spacing 3 in x 3 in
Caster Temp. Range -40 Degrees to 175 Degrees F
Core Color Gray
Caster Frame Material Steel
Durometer 75 Shore A
Non-Marking Yes
Item Standard Plate Caster
Caster Product Group Rigid Caster
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Frame Material Steel
Wheel Color Gray
Caster Temp. Range Available No
Caster Wheel Bearings Roller
Caster Max. Temp. 175 Degrees F
Plate Caster Bolt Hole Pattern B
Plate Thickness 7/32"
Caster Min. Temp. -40 Degrees F
Caster Brake Type No Brake Included
Wheel Bearing Type Roller
Includes Thread Guards No
Wheel/Tread Hardness 75 Shore A
Swivel Lock Type No Lock Included
Mounting Plate Bolt Hole Pattern B
Number of Mounting Holes 4
Swivel Construction Kingpinless
Wheel Core Material Plastic
Tread Shape Standard
Load Rating Range 300 to 999 lb
Wheel/Tread Hardness Rating Soft
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Color Gray

Description

Rigid, Standard Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard

Restrictions
