  6. Plate Caster, 80 lb. Load Rating

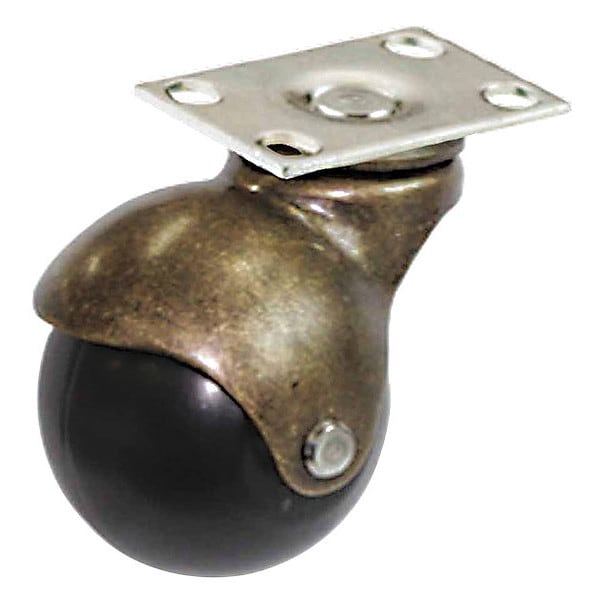

Zoro Select Plate Caster, 80 lb. Load Rating P4S-PB020G-P-AF - main

Plate Caster, 80 lb. Load Rating

  • Mfr # P4S-PB020G-P-AF

  • Zoro # G1606444

product price:  $3.95
/ea

Key Features

Extended Lead
No
Standards
DIN EN 12530
Overall Height
2-5/8in
Caster Brake Included
No
Inside Bolt Hole Spacing
1 in x 1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P4S-PB020G-P-AF
Zoro #
G1606444
UPC #
-
Country of Origin
China

Dimensions

Overall Height
2-5/8in
Swivel Radius
2-1/4 in
Mounting Bolt Dia.
3/16 in
Wheel Dia.
2 in
Wheel Width
1 7/8 in
Mounting Height
2 1/2 in
Mounting Plate Size
1-1/2 in x 2-1/8 in
Bolt Hole Spacing - Width
1 in
Overall Wheel Width
1 7/8 in
For Axle Dia.
1/4 in
Mounting Plate Length
1 1/2 in
Bolt Hole Spacing - Length
1 in
Mounting Plate Thickness
0.079 in

Details

Extended Lead
No
Standards
DIN EN 12530
Caster Brake Included
No
Inside Bolt Hole Spacing
1 in x 1 in
Caster Temp. Range Available
Yes
Frame Finish
Antique
Caster Brake Type
No Brake
Outside Bolt Hole Spacing
1 in x 1 in
Load Rating
80 lb
Caster Sub-Type
Swivel
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
System of Measurement
Inch
Non-Marking
Yes
Features
Chemical Resistance
Item
Swivel Caster
Caster Frame Material
Steel
Caster Plate Hole Pattern
D
Core Color
Black
Number of Wheels
1
Wheel Color
Black
Thread Guards
No
Includes Thread Guards
No
Tread Shape
Donut Tread
Swivel Construction
Kingpin
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polypropylene
Load Rating Range
Light Duty
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Round
Series
P4 Series
Caster Mounting Type
Plate
ESD Conductive
No
Load Capacity
80 lb
Tread Color
Black
Load Capacity - Maximum
80 lb
Wheel Hardness Rating
65 Shore D
Mounting Plate Shape
Square
Caster Features
Corrosion-Resistant, Maintenance Free
Wheel Core Type
Solid
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees To 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 80 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 1 7/8 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
