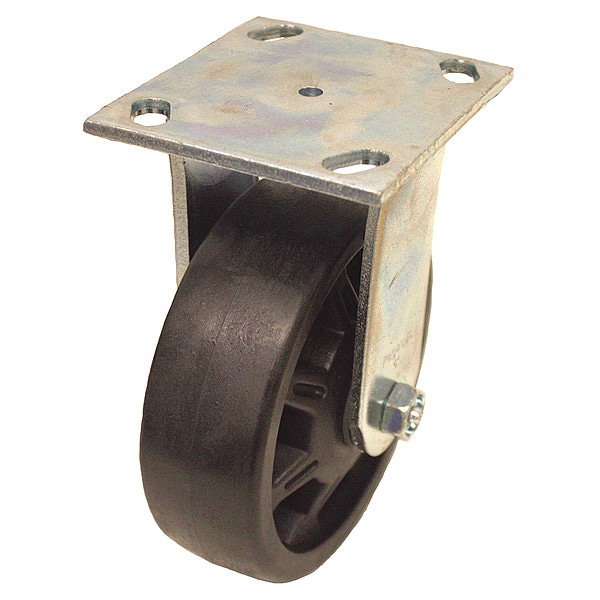

Zoro Select Plate Caster, 800 lb. Load Rating P21R-HNG040R-14 - main

Plate Caster, 800 lb. Load Rating

  • Mfr # P21R-HNG040R-14

  • Zoro # G1606471

product price:  $32.55
/ea

Key Features

Features
High-Temperature, Push/Pull Force Reduction
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Caster Brake Included
No
Load Rating
800 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-HNG040R-14
Zoro #
G1606471
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-5/8in
Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4-1/2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in
Mounting Plate Thickness
0.236 in

Details

Item
Rigid Caster
Features
High-Temperature, Push/Pull Force Reduction
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Caster Brake Included
No
Load Rating
800 lb
Core Color
Black
Caster Frame Material
Steel
Frame Finish
Zinc Plated
System of Measurement
Inch
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Rigid
Caster Brake Type
No Brake
Thread Guards
No
Replacement Wheel
Mfr. No. P-HNG-040x020/050R-001
Extended Lead
No
Wheel Color
Black
Standards
DIN EN 12532
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
Non-Marking
Yes
Number of Mounting Holes
4
Load Rating Range
Medium Duty
Swivel Lock Type
No Lock Included
Wheel Core Material
Glass Filled Nylon
Wheel Bearing Type
Roller
Wheel/Tread Material
Hi-Temp Glass Filled Nylon
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Color
Black
ESD Conductive
No
Caster Mounting Type
Plate
Series
P21 Series
Load Capacity
1250 lb
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
800 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Operating Temperature - Maximum
400 Degrees F
Operating Temperature Range
-45 Degrees To 500 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
