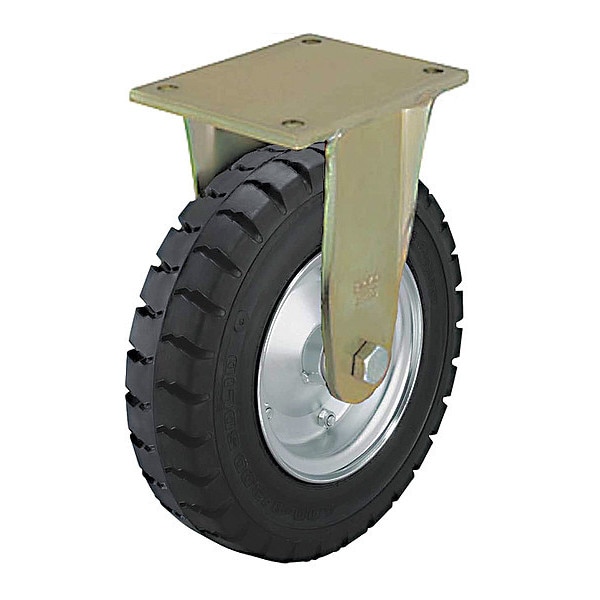

Solid Rubber Caster, 2090 lb. Ld, Rigid

  • Mfr # BS-VLE 410K
  • Zoro # G9463802
product price:
$
770.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Caster Brake Type
No Brake
Wheel Dia.
15 15/16 in
Load Rating
2090 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BS-VLE 410K
Zoro #
G9463802
UPC #
-
Country of Origin
Germany
Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Caster Brake Type
No Brake
Load Rating
2090 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
70 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Number of Wheels
1
Outside Bolt Hole Spacing
4-3/4 in x 6-5/16 in
Inside Bolt Hole Spacing
4-3/4 in x 6-5/16 in
Caster Plate Hole Pattern
D
Hub Type
Centered
Caster Temp. Range Available
Yes
Tread
Ribbed
Hub Color
Silver
Hub Material
Steel
Tread Color
Black
Frame Finish
Zinc Plated
Non-Marking
No
Core Color
Silver
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. VLE 410/25-90K
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Wheel/Tread Material
Rubber
Operating Temperature Range
-20 Degrees to 180 Degrees F
Load Rating Range
Medium-Duty
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Extended Lead
No
Wheel Type
Flat-Free
Load Capacity
950 kg
ESD Conductive
No
Wheel Core Material
Pressed Steel
Series
BS Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity - Maximum
2,095 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Wheel Bearing Material
Steel

Dimensions

Wheel Dia.
15 15/16 in
Mounting Plate Size
160 mm x 200 mm
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
9/16 in
Hub Width
3-35/64"
Tire Rim Dia.
9 1/4 in
Overall Height
18-5/8"
Wheel Width
4 1/8 in
Tire Thickness
3 11/32 in
Mounting Height
18 5/8 in
Bolt Hole Spacing - Length
6.313 in
For Axle Dia.
16 mm
Overall Wheel Width
4 1/8 in
Mounting Plate Length
6 5/16 in
Bolt Hole Spacing - Width
4.75 in

Description

Rigid, Plate Caster, Load Rating 2090 lb, Wheel Dia. 15 15/16 in, Wheel Width 4 1/8 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
