  11. Plate Caster, 880 lb. Ld Rating, Ball
Zoro Select Plate Caster, 880 lb. Ld Rating, Ball LH-GTH 100K-1 - main

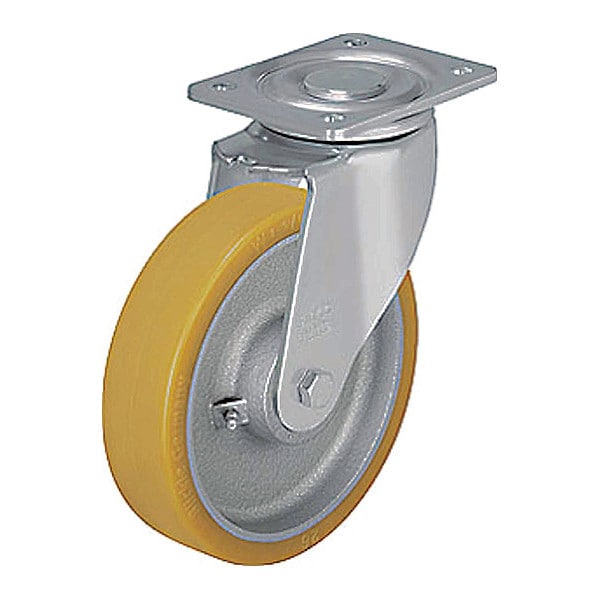

Plate Caster, 880 lb. Ld Rating, Ball

  • Mfr # LH-GTH 100K-1

  • Zoro # G7279522

product price: $85.89
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-GTH 100K-1
Zoro #
G7279522
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 9/16 in
Mounting Height
5 1/2 in
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
6 mm
Mounting Bolt Dia.
5/16 in
Overall Height
5-33/64in
Swivel Radius
95 mm
Overall Wheel Width
1 9/16 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Length
3.156 in
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Width
2.375 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake
Load Rating
880 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
D
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. GTH 100/15K
Wheel Color
Yellow
Features
Floor Protective
Caster Brake Included
No
Standards
RoHS, ICWM
Thread Guards
No
Extended Lead
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Wheel Core Material
Cast Iron
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy Duty
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Tread Color
Light Brown
Series
LH Series
Tread
Standard
Accessories
Optional: RI-04.01 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
400 kg
Load Capacity - Maximum
990 lb
Compatible With
GTH 100/15K
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 880 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
