Shop ZORO SELECT

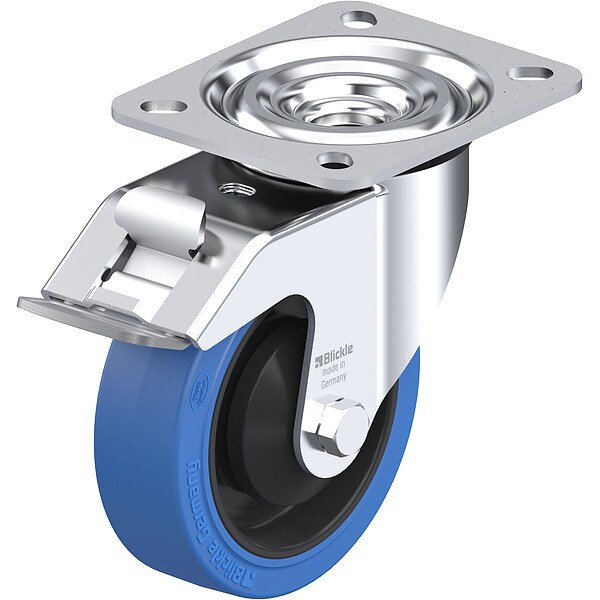

Plate Caster, Swivel, Rubber, 4 15/16"H

  • Mfr # L-POEV 100KA-FI-SB

  • Zoro # G714811043

product price:  $87.15
/ea

Key Features

System of Measurement
Metric
Mounting Height
125 mm
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Mounting Bolt Dia.
9 mm
Wheel/Tread Color
Blue
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-POEV 100KA-FI-SB
Zoro #
G714811043
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
125 mm
Mounting Bolt Dia.
9 mm
Wheel Width
32 mm
Wheel Dia.
102 mm
Outside Slot Spacing - Length
80 mm
For Axle Dia.
8 mm
Hub Length
36 mm
Mounting Plate Thickness
3 mm
Mounting Plate Length
100 mm
Overall Wheel Width
32 mm
Inside Slot Spacing - Width
55 mm
Outside Slot Spacing - Width
60 mm
Mounting Plate Width
86 mm
Inside Slot Spacing - Length
76 mm

Details

System of Measurement
Metric
Item
Plate Caster
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Wheel/Tread Color
Blue
Caster Brake Type
Total Lock
Number of Mounting Holes
4
Number of Wheels
1
Caster Sub-Type
Swivel
Swivel Construction
Kingpin
Core Color
Black
Non-Marking
Yes
Series
POEV
Caster Frame Material
Steel
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Wheel/Tread Material
Rubber
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Core Material
Nylon
Tread Shape
Standard
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Swivel Raceway Type
Double Ball
Wheel Hardness Rating
65 Shore A
Brake Location
Rear
Mounting Hole Type
Slot
NSF Listed
No
Wheel Core Type
Solid
Swivel Bearing Seal Type
Sealed
Load Capacity - Maximum
440 lb
Wheel Bearing Type
Ball
Operating Temperature - Minimum
-20 Degrees C
Wheel Bearing Material
Steel
Includes Thread Guards
Yes
Operating Temperature - Maximum
80 Degrees C
Frame Construction
Pressed

Description

Swivel, Plate Caster, Wheel Dia. 102 mm, Wheel Width 32 mm, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
