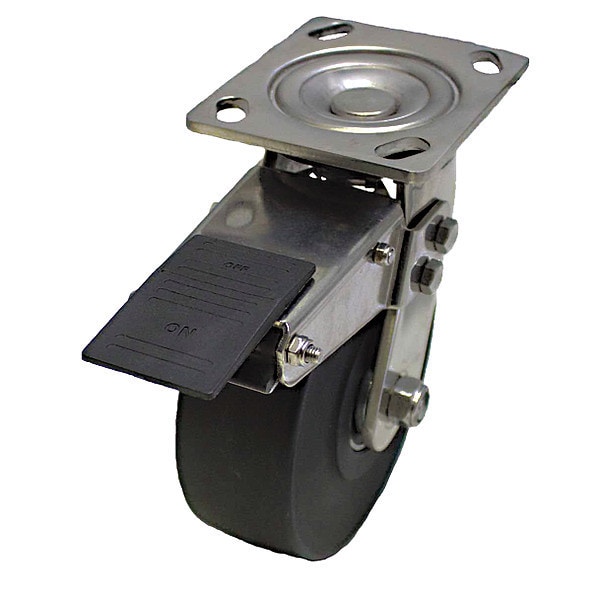

Zoro Select Plate Caster, 880 lb. Load, Black Wheel P21SX-NMB040K-14-TB - main

Plate Caster, 880 lb. Load, Black Wheel

  • Mfr # P21SX-NMB040K-14-TB

  • Zoro # G1617583

product price:  $165.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Stainless Steel
Core Color
Black
Includes
Complete Caster with Brake
Swivel Radius
5 15/16 in
Frame Finish
Polished
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21SX-NMB040K-14-TB
Zoro #
G1617583
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
5 15/16 in
Overall Height
5-5/8in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
15/64in
Mounting Plate Length
4 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in

Details

Caster Frame Material
Stainless Steel
Core Color
Black
Includes
Complete Caster with Brake
Frame Finish
Polished
Caster Plate Hole Pattern
B
Number of Wheels
1
Caster Brake Included
Yes
Features
Corrosion Resistance
Caster Sub-Type
Swivel
Wheel Color
Black
Extended Lead
No
Non-Marking
Yes
Thread Guards
No
Standards
ANSI ICWM
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-NMB-040x020/050K
Item
Swivel Caster with Total Lock
Caster Brake Type
Total Lock
Load Rating
880 lb
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Temp. Range Available
Yes
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Number of Mounting Holes
4
Wheel Core Material
Nylon
Swivel Lock Type
Total Lock
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Wheel Bearing Type
Ball
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Load Capacity
880 lb
ESD Conductive
No
Tread
Standard
Caster Mounting Type
Plate
Series
P21X Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Black
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
880 lb
Wheel Hardness Rating
80 Shore D
Compatible With
P-NMB-040X020/050K
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Brake Location
Rear
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees To 250 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 880 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
