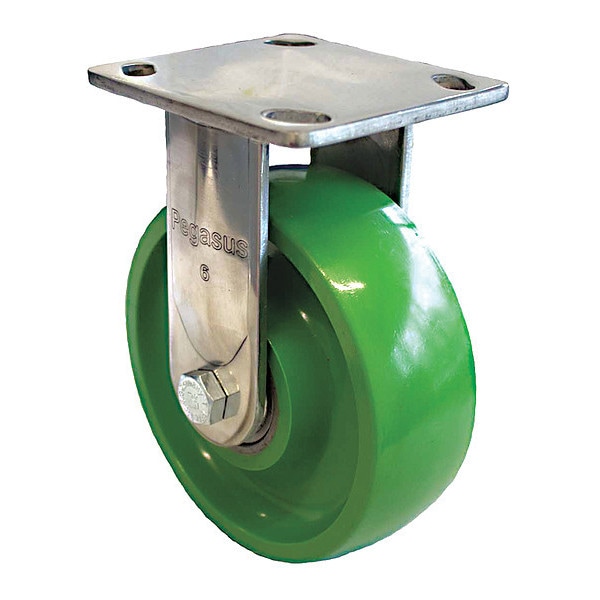

Plate Caster, 880 lb. Load, Green Wheel

product price: $99.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Medium Duty
  • Caster Sub-Type Rigid
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 9-1/2 in
Wheel Dia. 8 in
Wheel Width 2 in
Mounting Bolt Dia. 3/8 in
Swivel Radius None- Rigid Caster
Caster Plate Size 4 in x 4-1/2 in
Mounting Height 9 1/2 in
Mounting Plate Size 4 in x 4 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Medium Duty
Caster Sub-Type Rigid
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 880 lb
Number of Wheels 1
Thread Guards No
Caster Temp. Range -15 Degrees To 160 Degrees F
Durometer 75 Shore D
Includes Complete Caster
Inside Bolt Hole Spacing 3 in x 3 in
Frame Finish Stainless Steel
Caster Min. Temp. -20 Degrees F
Wheel Color Green
Standards RoHS, ICWM, NSF
Caster Core Material Polyurethane
Caster Temp. Range Available Yes
System of Measurement Inch
Replacement Wheel Mfr. No. P-U-080x020/050K
Caster Product Group Rigid Caster
Extended Lead No
Features Corrosion Resistance, Floor Protective
Caster Plate Hole Pattern B
Caster Swivel Lock Type No Lock Included
Caster Wheel Bearings Precision Ball
Plate Caster Bolt Hole Pattern B
Core Color Green
Caster Max. Temp. 180 Degrees F
Caster Plate Thickness 0.236 in
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Application Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type No Brake Included
Caster Frame Material Stainless Steel
Item Rigid Plate Caster
Non-Marking Yes
Wheel/Tread Hardness Rating Hard
Swivel Lock Type No Lock Included
Mounting Plate Bolt Hole Pattern B
Includes Thread Guards No
Tread Shape Standard
Wheel Core Material Polyurethane
Number of Mounting Holes 4
Wheel/Tread Hardness 92 Shore A
Wheel Bearing Type Precision Ball
Wheel/Tread Material Polyurethane
Wheel/Tread Color Green
Caster Mounting Type Plate
Series P21X Series
Caster Break Type No Brake Included
Tread Color Green
Resistant To High Chemical Resistance To Many Aggressive Substances
ESD Conductive No
Tread Standard
Load Capacity 880 lb

Description

Rigid, Corrosion-Resistant Standard Plate Caster, Load Rating 880 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
