  11. Plate Caster, Light-Duty, 5" Wheel Dia.
Zoro Select Plate Caster, Light-Duty, 5" Wheel Dia. 416P30 - main

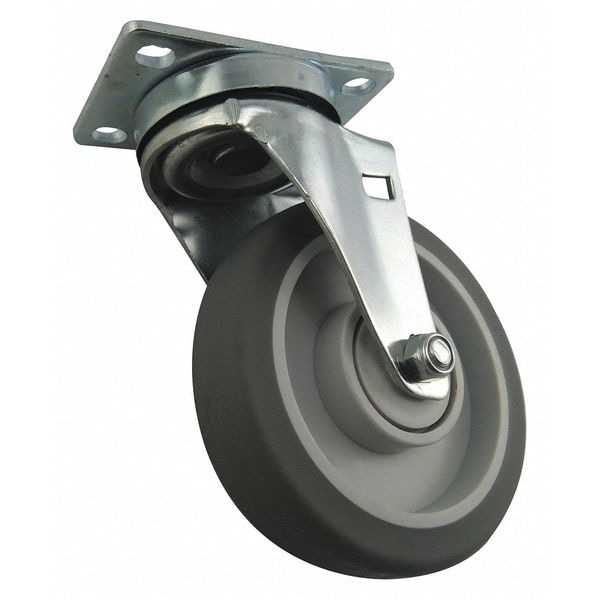

Plate Caster, Light-Duty, 5" Wheel Dia.

  • Mfr # 416P30

  • Zoro # G5558310

product price: $10.09
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
416P30
Zoro #
G5558310
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 1/4 in
Mounting Plate Size
2 1/2 in x 3 3/4 in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
6-1/4in
Swivel Radius
4 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
280 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Inside Bolt Hole Spacing
1-3/4 in x 2-3/4 in
Caster Plate Hole Pattern
C
Application
General Purpose
Frame Finish
Zinc Plated
Thread Guards
Yes
Caster Brake Included
No
Caster Temp. Range Available
Yes
Wheel Color
Gray
Includes
Thread Guards
Load Rating Range
0 to 299 lb
Includes Thread Guards
Yes
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Load Capacity - Maximum
280 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 280 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
