  11. Plate Caster, Rigid, Phenolic, 7 1/2"H
Zoro Select Plate Caster, Rigid, Phenolic, 7 1/2"H P21R-PH060R-15 - main

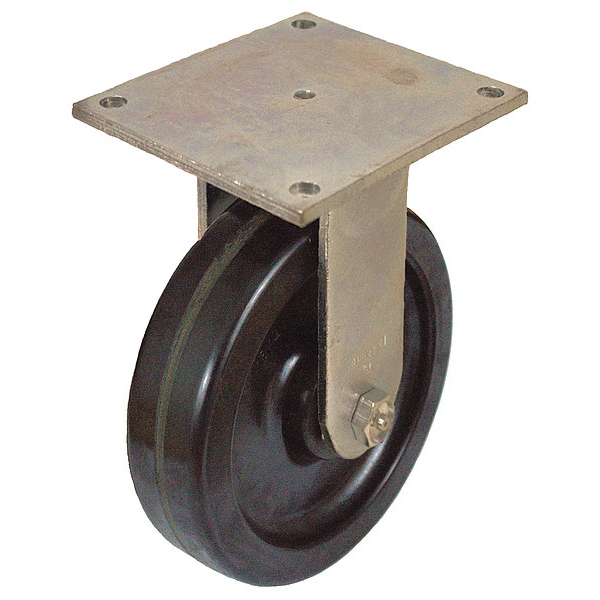

Plate Caster, Rigid, Phenolic, 7 1/2"H

  • Mfr # P21R-PH060R-15

  • Zoro # G2974116

product price: $65.39
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21R-PH060R-15
Zoro #
G2974116
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
5 in x 5 1/2 in
Mounting Plate Thickness
7/32 in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Overall Wheel Width
2 in
Hub Length
2 3/16 in
Swivel Radius
None- Rigid Caster
For Axle Dia.
1/2 in
Mounting Plate Width
5 in
Bolt Hole Spacing - Width
4.5 in
Mounting Plate Length
5 1/2 in
Bolt Hole Spacing - Length
4.125 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
1200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
102 HRE
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Plate Hole Pattern
D
Standards
ANSI ICWM
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
With Toe Plate
No
Operating Temperature Range
-20 Degrees to 250 Degrees F
Includes Thread Guards
No
Frame Color
Silver
Swivel Raceway Type
Single Ball
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Includes Spanner Bushing
Yes
Frame Finish
Zinc Plated
ESD Conductive
No
Swivel Bearing Seal Type
Open
Includes Mounting Fasteners
No
NSF Listed
No
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Wheel/Tread Hardness Rating
Hard
Frame Construction
Stamped
Wheel Core Material
Phenolic
Features
Low Rolling Resistance
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Replacement Wheel
490V95
Swivel Construction
Kingpin
Series
Pegasus 21 Series
Compatible With
55KC04, 55KC05
Load Capacity - Maximum
1,200 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
