  11. Plate Caster, Rigid, Polyurethane, 5 1/2"H

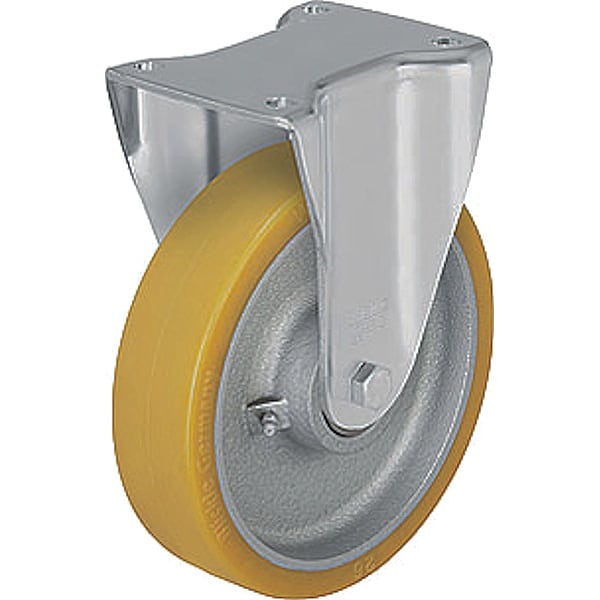

Zoro Select Plate Caster, Rigid, Polyurethane, 5 1/2"H BH-GTH 100K-3 - main

Plate Caster, Rigid, Polyurethane, 5 1/2"H

  • Mfr # BH-GTH 100K-3

  • Zoro # G3573079

product price: $79.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BH-GTH 100K-3
Zoro #
G3573079
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 9/16 in
Mounting Height
5 1/2 in
Mounting Plate Size
4-3/8in x 5-1/2in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
3/8 in
Overall Height
5-1/2in
Swivel Radius
None- Rigid Caster
Inside Slot Spacing - Length
4.125 in
Inside Slot Spacing - Width
2.969 in
Overall Wheel Width
1 9/16 in
For Axle Dia.
10 mm
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
880 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Replacement Wheel
Mfr. No. GTH 100/15K
Wheel Color
Yellow
Wheel Core Material
Cast Iron
Tread Color
Light Brown
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Features
Floor Protective
Standards
RoHS, ICWM
Caster Brake Included
No
Extended Lead
No
Load Capacity
400 kg
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Load Rating Range
Light-Medium Duty
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Thread Guards
No
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
BH Series
Compatible With
GTH 100/15K
Load Capacity - Maximum
990 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 880 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
