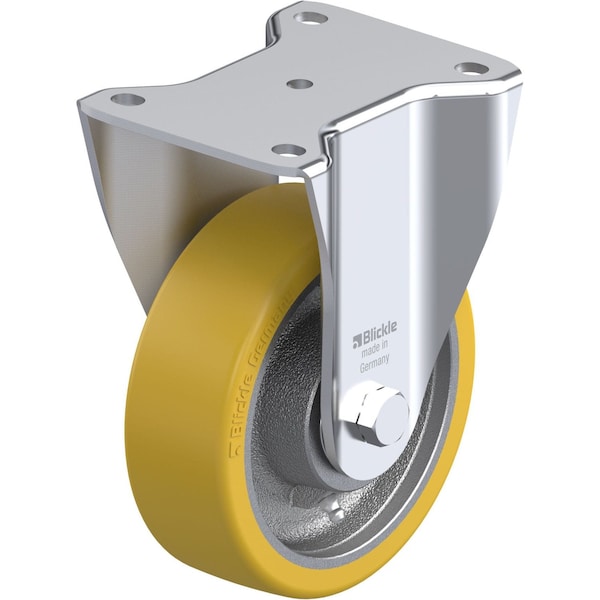

Plate Caster, Rigid, Polyurethane, 7 3/4"H

  • Mfr # BH-GTH 150K

  • Zoro # G1619263

product price:
$
120.99
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Wheel Dia.
6 in
Standards
DIN EN 12532
Extended Lead
No
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BH-GTH 150K
Zoro #
G1619263
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Swivel Radius
None- Rigid Caster
Overall Height
7-3/4"
Mounting Plate Size
110 mm x 140 mm
Mounting Height
7 3/4 in
For Axle Dia.
12 mm
Inside Slot Spacing - Length
4.125 in
Mounting Plate Thickness
5/32 in
Overall Wheel Width
2 in
Mounting Plate Length
4 5/16 in
Inside Slot Spacing - Width
2.969 in
Outside Slot Spacing - Width
3.156 in
Outside Slot Spacing - Length
4.125 in

Details

Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Standards
DIN EN 12532
Extended Lead
No
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Brake Included
No
Caster Temp. Range Available
Yes
Thread Guards
No
Load Rating
1650 lb
Item
Plate Caster
Replacement Wheel
Mfr. No. GTH 150/20K
Caster Plate Hole Pattern
C
Core Color
Silver
Frame Finish
Zinc Plated
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Caster Frame Material
Steel
Features
Floor Protective
Wheel Color
Yellow
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Number of Wheels
1
System of Measurement
Inch
Wheel Bearing Type
Ball
Wheel Core Material
Iron
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
Load Capacity
750 kg
ESD Conductive
No
Tread
Standard
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
BH Series
Tread Color
Light Brown
Wheel Hardness Rating
92 Shore A
Compatible With
GTH 150/20K
Load Capacity - Maximum
1,765 lb
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 1650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
