  11. Plate Caster, Rigid, Polyurethane, 8 1/2"H

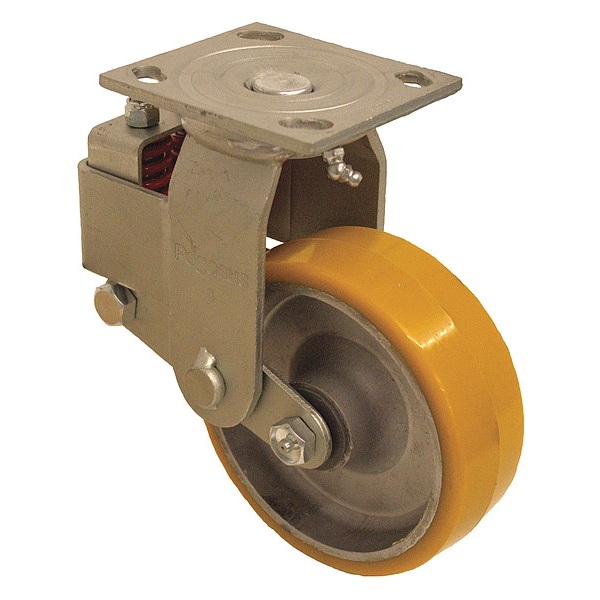

Zoro Select Plate Caster, Rigid, Polyurethane, 8 1/2"H P22S-UA060R-14 - main

Plate Caster, Rigid, Polyurethane, 8 1/2"H

  • Mfr # P22S-UA060R-14

  • Zoro # G3779700

product price: $100.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P22S-UA060R-14
Zoro #
G3779700
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
8 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-3/4 in
Overall Height
8-1/2in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in

Details

Item
Swivel Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel Color
Yellow
Extended Lead
No
Tread
Standard
Thread Guards
No
Swivel Construction
Kingpin
Replacement Wheel
Mfr. No. P-UA-060x020/050R
Operating Temperature Range
-15 Degrees To 160 Degrees F
Swivel Raceway Type
Double Ball
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Yellow
Wheel Core Material
Aluminum
Load Rating Range
Light-Medium Duty
Standards
RoHS, ICWM
Caster Brake Included
No
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Features
Floor Protective, Noise Reduction, Shock Absorbsion
Swivel Lock Type
No Lock Included
ESD Conductive
No
Load Capacity
500 lb
Series
P22 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Max. Spring Deflection
55/64 in
Load Capacity - Maximum
500 lb
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Maximum Compression Force
800 lb
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
