  11. Plate Caster, Swivel, 4 11/16"H

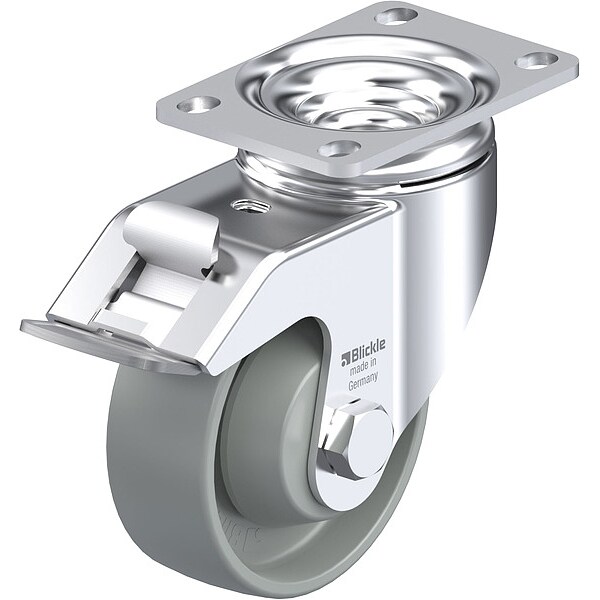

Zoro Select Plate Caster, Swivel, 4 11/16"H L-POG 89KA-12-FI - main

Plate Caster, Swivel, 4 11/16"H

  • Mfr # L-POG 89KA-12-FI

  • Zoro # G814810861

product price: $42.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Brake Type
Total Lock
Wheel Dia.
3 1/2 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-POG 89KA-12-FI
Zoro #
G814810861
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 1/2 in
Wheel Width
1 1/4 in
Mounting Height
4 11/16 in
Mounting Plate Thickness
1/8 in
Mounting Bolt Dia.
9 mm
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
3 5/8 in
Hub Length
38 mm
Overall Wheel Width
1 1/4 in
Mounting Plate Width
2 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Series
POG
Frame Finish
Zinc Plated
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Application
Food Service, Institutional
Operating Temperature - Minimum
-20 Degrees C
Wheel Bearing Material
Steel
Load Capacity - Maximum
990 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Frame Construction
Pressed
Brake Location
Rear
Includes Thread Guards
Yes
Operating Temperature - Maximum
80 Degrees C
Caster Features
Corrosion-Resistant
NSF Listed
No
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Swivel Raceway Type
Double Ball

Description

Swivel, Plate Caster, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
