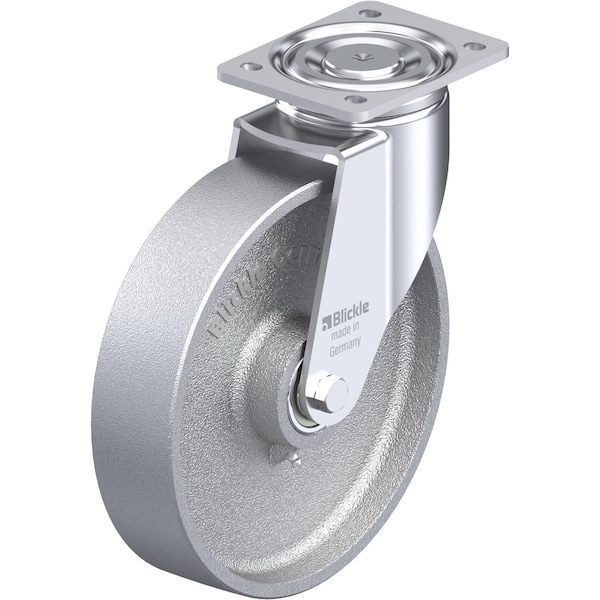

Plate Caster, Swivel, Metal, 11 5/8"H

  • Mfr # LH-G 250K

  • Zoro # G2151705

product price:
$
219.21
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Number of Wheels
1
Features
Floor Protective, Reduced Swivel Forces
Extended Lead
No
Wheel Dia.
10 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LH-G 250K
Zoro #
G2151705
UPC #
-
Country of Origin
Germany
Item
Plate Caster
Non-Marking
Yes
Number of Wheels
1
Features
Floor Protective, Reduced Swivel Forces
Extended Lead
No
Caster Plate Hole Pattern
C
Standards
DIN EN 12532
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Caster Sub-Type
Swivel
Replacement Wheel
Mfr. No. G 250/25K
Core Color
Silver
Load Rating
1980 lb
Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Wheel Color
Gray
Caster Brake Included
No
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Thread Guards
No
Caster Brake Type
No Brake
Load Rating Range
Heavy Duty
Wheel Core Material
Iron
Tread Shape
Standard
Wheel/Tread Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Wheel/Tread Color
Gray
System of Measurement
Inch
Tread Color
Silver
Series
LH Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Load Capacity
900 kg
ESD Conductive
No
Tread
Standard
Compatible With
G 250/25K
Load Capacity - Maximum
1,985 lb
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Wheel Hardness Rating
180 HB
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-100 Degrees To 600 Degrees C

Description

Swivel, Plate Caster, Load Rating 1980 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 2 3/8 in, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
