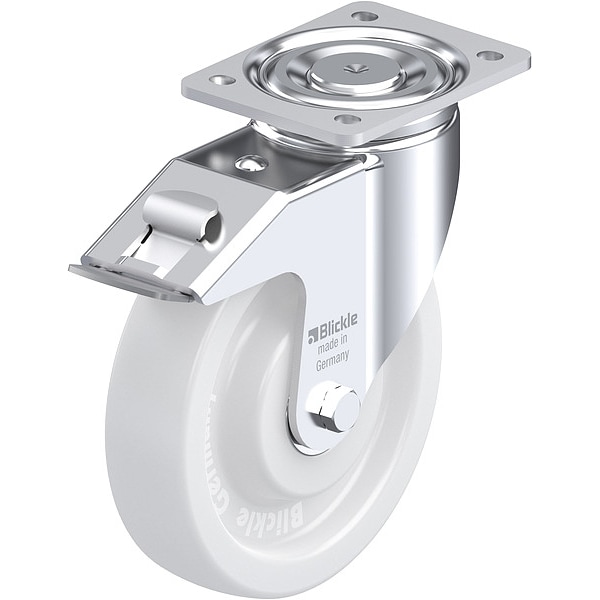

Zoro Select Plate Caster, Swivel, 9 5/8"H LH-SPO 200K-FI - main

Plate Caster, Swivel, 9 5/8"H

  • Mfr # LH-SPO 200K-FI

  • Zoro # G114810967

product price:  $366.99
/ea
Free Shipping & Returns

Key Features

Swivel Construction
Kingpin
Caster Mounting Type
Plate
Number of Mounting Holes
4
Core Color
White
Wheel/Tread Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-SPO 200K-FI
Zoro #
G114810967
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
10 mm
Mounting Height
244 mm
Wheel Dia.
102 mm
Wheel Width
51 mm
Overall Wheel Width
51 mm
Mounting Plate Length
110 mm
Hub Length
61 mm
Mounting Plate Thickness
6 mm
For Axle Dia.
12 mm
Inside Slot Spacing - Width
75.412 mm
Inside Slot Spacing - Length
104.775 mm
Outside Slot Spacing - Length
104.775 mm
Mounting Plate Width
110 mm
Outside Slot Spacing - Width
80.167 mm

Details

Swivel Construction
Kingpin
Caster Mounting Type
Plate
Number of Mounting Holes
4
Core Color
White
Wheel/Tread Color
White
Caster Frame Material
Steel
Features
Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Number of Wheels
1
Caster Sub-Type
Swivel
Item
Plate Caster
Non-Marking
Yes
Caster Brake Type
Total Lock
System of Measurement
Metric
Series
SPO
Frame Finish
Zinc Plated
Wheel Hardness Rating
70 Shore D
Wheel Bearing Type
Ball
Wheel Core Type
Solid
Operating Temperature - Minimum
-20 Degrees C
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Tread Shape
Standard
Mounting Hole Type
Slot
Includes Thread Guards
No
Brake Location
Rear
Operating Temperature - Maximum
80 Degrees C
Mounting Plate Shape
Rectangle
Frame Construction
Pressed
Caster Features
Corrosion-Resistant
Swivel Raceway Type
Double Ball
Load Capacity - Maximum
1,985 lb

Description

Swivel, Plate Caster, Wheel Dia. 102 mm, Wheel Width 51 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
