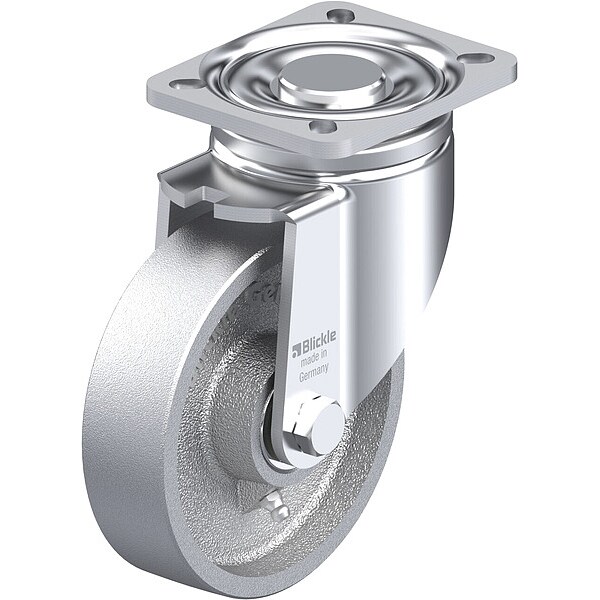

Plate Caster, Swivel, Metal, 6 1/2"H

Name: Plate Caster, Swivel, Metal, 6 1/2"H
Brand: Zoro Select
SKU: G614811006
Price: 219.99 USD
Availability: InStock

219.99

/ea

Free Shipping & Returns

Frame Finish

Zinc Plated

Core Color

Gray

Series

Caster Brake Type

No Brake

Number of Mounting Holes

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Wheel Width: 35 mm
Wheel Dia.: 203 mm
Mounting Height: 165 mm
Mounting Bolt Dia.: 8 mm
Mounting Plate Thickness: 6 mm
Hub Length: 45 mm
Mounting Plate Width: 85 mm
Overall Wheel Width: 35 mm
Bolt Hole Spacing - Length: 80.167 mm
Mounting Plate Length: 100 mm
Bolt Hole Spacing - Width: 60.325 mm
For Axle Dia.: 10 mm
Fits Chest Size: Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats

Frame Finish: Zinc Plated
Core Color: Gray
Series: G
Caster Brake Type: No Brake
Number of Mounting Holes: 4
Wheel/Tread Color: Gray
Number of Wheels: 1
System of Measurement: Metric
Caster Frame Material: Steel
Item: Plate Caster
Caster Sub-Type: Swivel
Swivel Construction: Kingpin
Features: Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Caster Mounting Type: Plate
Non-Marking: Yes
Includes Thread Guards: No
Caster Features: Corrosion-Resistant
Wheel Hardness Rating: 180 HB
Wheel Bearing Type: Ball
Mounting Plate Shape: Rectangle
Load Capacity - Maximum: 2,480 lb
Wheel Bearing Material: Steel
Swivel Raceway Type: Double Ball
For Surface Type: Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Frame Construction: Pressed
Mounting Hole Type: Hole
Wheel Core Type: Solid
Tread Shape: Standard
Product Type: Plate Caster

Swivel, Plate Caster, Wheel Dia. 203 mm, Wheel Width 35 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
