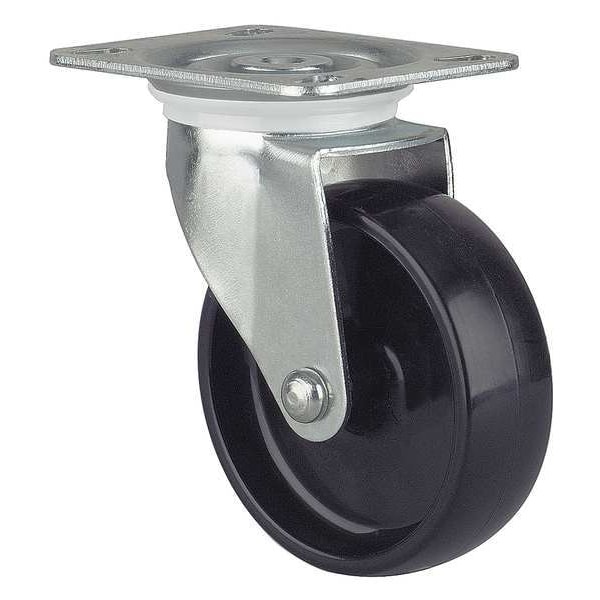

Zoro Select Plate Caster, Swivel, Nylon, 4 in., 330 lb, A TSSV 100 BN0S - main

Plate Caster, Swivel, Nylon, 4 in., 330 lb, A

  • Mfr # TSSV 100 BN0S

  • Zoro # G4396603

product price:  $16.39
/ea

Key Features

Outside Bolt Hole Spacing
2-3/8 in x 3-3/16 in
Caster Stem Type
No Stem/Plate Included
Application
General Purpose
Frame Finish
Zinc Plated
Load Rating
330 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
TSSV 100 BN0S
Zoro #
G4396603
UPC #
-
Country of Origin
United Kingdom

Dimensions

Mounting Bolt Dia.
5/16 in
Overall Height
5in
Wheel Dia.
4 in
Stem Dia.
No Stem
Wheel Width
1 1/4 in
Mounting Height
5 in
Mounting Plate Size
3 1/8 in x 4 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Length
4 in
Mounting Plate Width
3 1/8 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.188 in
Outside Slot Spacing - Width
2.375 in
For Axle Dia.
8 mm
Overall Wheel Width
35 mm
Mounting Plate Thickness
1/8 in

Details

Outside Bolt Hole Spacing
2-3/8 in x 3-3/16 in
Caster Stem Type
No Stem/Plate Included
Application
General Purpose
Frame Finish
Zinc Plated
Load Rating
330 lb
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Standards
ANSI ICWM
Number of Wheels
1
Caster Temp. Range Available
Yes
Thread Guards
No
Non-Marking
Yes
Extended Lead
No
Item
Plate Caster
Caster Sub-Type
Swivel
Wheel Color
Black
Core Color
Black
Caster Brake Included
No
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Caster Brake Type
No Brake
System of Measurement
Inch
Number of Mounting Holes
4
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Nylon
Wheel Bearing Type
Plain
Includes Thread Guards
No
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Load Capacity - Maximum
330 lb
Wheel Hardness Rating
80 Shore D
Wheel Bearing Material
Steel
For Surface Type
Ceramic, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature - Minimum
15 Degrees F
Operating Temperature Range
14 Degrees to 104 Degrees F
Operating Temperature - Maximum
100 Degrees F

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
