  11. Plate Caster, Swivel, Phenolic, 10 1/8"H

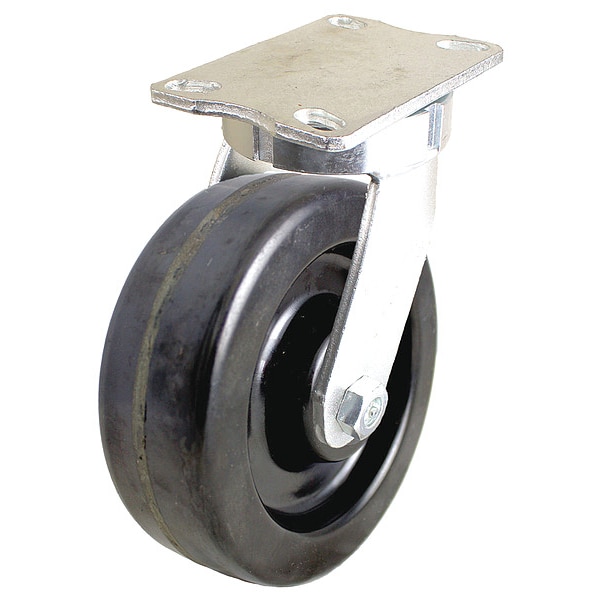

Zoro Select Plate Caster, Swivel, Phenolic, 10 1/8"H P27S-PH080R-16 - main

Plate Caster, Swivel, Phenolic, 10 1/8"H

  • Mfr # P27S-PH080R-16

  • Zoro # G2977616

product price: $77.35
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-PH080R-16
Zoro #
G2977616
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/8 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6 15/16 in
Overall Wheel Width
3 in
Overall Height
10-1/8in
Hub Length
3 1/4 in
For Axle Dia.
3/4 in
Bolt Hole Spacing - Length
2.438 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
6 1/4 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
2500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
102 HRE
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Frame Construction
Stamped
Includes Spanner Bushing
Yes
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Series
Pegasus 27 Series
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Wheel Bearing Material
Steel
Standards
ANSI ICWM
Swivel Lead
2 1/16 in
Wheel Core Type
Solid
Wheel/Tread Hardness Rating
Hard
Features
Low Rolling Resistance
With Toe Plate
No
Frame Color
Silver
Operating Temperature Range
-20 Degrees to 250 Degrees F
Swivel Raceway Type
Double Ball
Replacement Wheel
489D40
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Includes Mounting Fasteners
No
ESD Conductive
No
Swivel Bearing Seal Type
Open
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Core Material
Phenolic
NSF Listed
No
Load Capacity - Maximum
2,500 lb
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
