  11. Plate Caster, Swivel, Polyurethane, 2 7/8"H

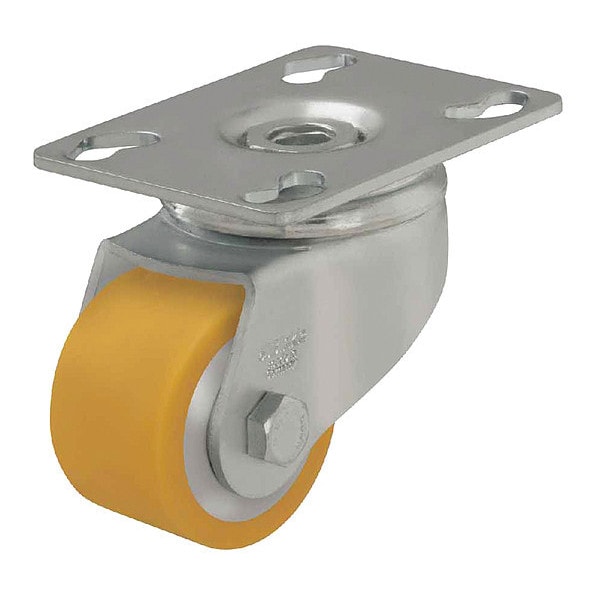

Zoro Select Plate Caster, Swivel, Polyurethane, 2 7/8"H LKPA-VSTH 50K - main

Plate Caster, Swivel, Polyurethane, 2 7/8"H

  • Mfr # LKPA-VSTH 50K

  • Zoro # G3575300

product price: $55.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKPA-VSTH 50K
Zoro #
G3575300
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
1 5/16 in
Mounting Height
2 7/8 in
Mounting Plate Size
2-9/16in x 3-9/16in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
2-7/8in
Swivel Radius
54 mm
Inside Slot Spacing - Length
61 mm
For Axle Dia.
8 mm
Bolt Hole Spacing - Length
2.969 in
Mounting Plate Length
90 mm
Outside Slot Spacing - Width
51 mm
Outside Slot Spacing - Length
75 mm
Inside Slot Spacing - Width
45 mm
Overall Wheel Width
1 5/16 in
Mounting Plate Width
66 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
330 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
45 mm x 75 mm
Inside Bolt Hole Spacing
51 mm x 61 mm
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Wheel Core Material
Steel
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Replacement Wheel
Mfr. No. VSTH 50/8K
Wheel Color
Yellow
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread
Standard
Caster Brake Included
No
Features
Floor Protective, Reduced Swivel Forces
Standards
RoHS, ICWM, NSF
Tread Color
Light Brown
Load Rating Range
Light-Medium Duty
Extended Lead
No
Swivel Construction
Kingpin
Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
150 kg
Series
LKPA Series
Compatible With
VSTH 50/8K
Load Capacity - Maximum
330 lb
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Hole
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 1 5/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
