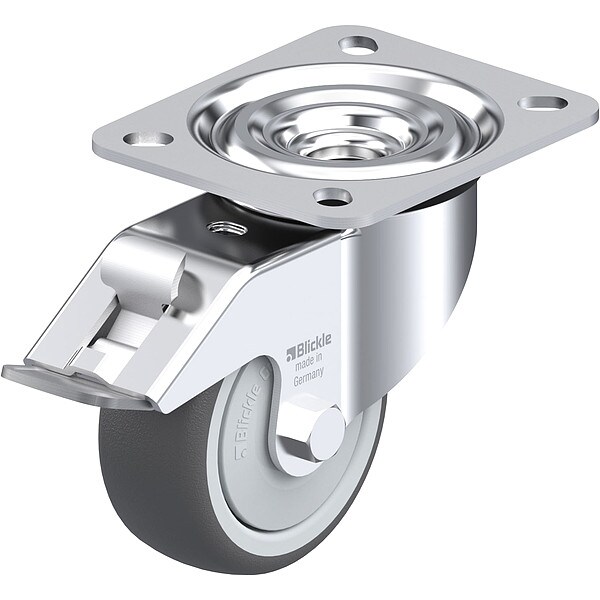

Plate Caster, Swivel, Polyurethane, 4"H

  • Mfr # L-PATH 80KF-FI
  • Zoro # G114810868
product price:
$
75.65
/ea

Key Features

Series
PATH
Core Color
Silver
Mounting Height
102 mm
Non-Marking
Yes
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-PATH 80KF-FI
Zoro #
G114810868
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
102 mm
Wheel Width
32 mm
Wheel Dia.
79 mm
Mounting Bolt Dia.
9 mm
Mounting Plate Thickness
3 mm
For Axle Dia.
8 mm
Mounting Plate Length
100 mm
Overall Wheel Width
32 mm
Mounting Plate Width
86 mm
Inside Slot Spacing - Length
76 mm
Outside Slot Spacing - Width
60 mm
Outside Slot Spacing - Length
80 mm
Inside Slot Spacing - Width
55 mm
Hub Length
38 mm
Fits Chest Size
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large

Details

Series
PATH
Core Color
Silver
Non-Marking
Yes
Item
Plate Caster
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
Wheel/Tread Color
Gray
Caster Brake Type
Total Lock
Number of Mounting Holes
4
Frame Finish
Zinc Plated
System of Measurement
Metric
Swivel Construction
Kingpin
Caster Mounting Type
Plate
Number of Wheels
1
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Brake Location
Rear
Operating Temperature - Maximum
70 Degrees C
NSF Listed
No
Wheel Hardness Rating
94 Shore A
Mounting Hole Type
Slot
Tread Shape
Standard
Swivel Bearing Seal Type
Sealed
Wheel Core Type
Solid
Wheel Bearing Type
Ball
Wheel Bearing Material
Steel
Wheel Core Material
Nylon
Operating Temperature - Minimum
-20 Degrees C
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Mounting Plate Shape
Rectangle
Frame Construction
Pressed
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel/Tread Material
Polyurethane
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Load Capacity - Maximum
330 lb
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 79 mm, Wheel Width 32 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
