  6. PlateCaster, Swivl, Polyurethane, 4 15/16"H

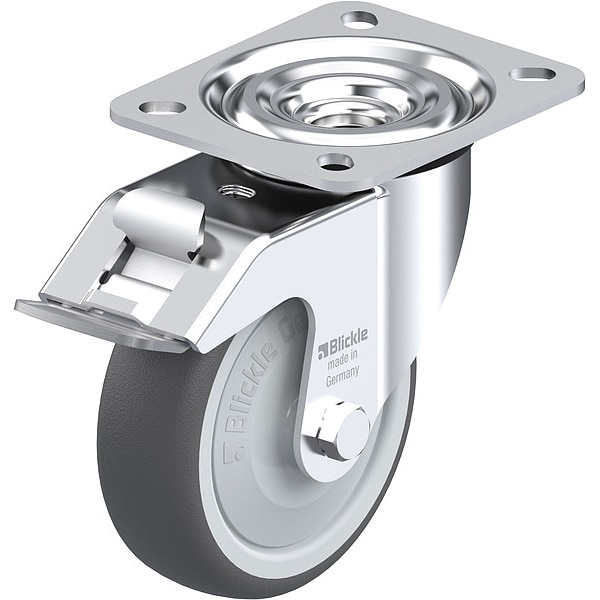

Zoro Select PlateCaster, Swivl, Polyurethane, 4 15/16"H L-PATH 100KF-FI - main

PlateCaster, Swivl, Polyurethane, 4 15/16"H

  • Mfr # L-PATH 100KF-FI

  • Zoro # G714810930

product price:  $69.89
/ea

Key Features

Caster Brake Type
Total Lock
System of Measurement
Metric
Core Color
Silver
Wheel/Tread Color
Gray
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-PATH 100KF-FI
Zoro #
G714810930
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
32 mm
Mounting Bolt Dia.
9 mm
Wheel Dia.
102 mm
Mounting Height
125 mm
For Axle Dia.
8 mm
Outside Slot Spacing - Length
80 mm
Mounting Plate Width
86 mm
Mounting Plate Length
100 mm
Hub Length
36 mm
Overall Wheel Width
32 mm
Outside Slot Spacing - Width
60 mm
Inside Slot Spacing - Width
55 mm
Mounting Plate Thickness
3 mm
Inside Slot Spacing - Length
76 mm

Details

Caster Brake Type
Total Lock
System of Measurement
Metric
Core Color
Silver
Wheel/Tread Color
Gray
Number of Wheels
1
Number of Mounting Holes
4
Non-Marking
Yes
Series
PATH
Swivel Construction
Kingpin
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Item
Plate Caster
Caster Mounting Type
Plate
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
Caster Sub-Type
Swivel
Wheel Hardness Rating
94 Shore A
Operating Temperature - Maximum
70 Degrees C
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Brake Location
Rear
Frame Construction
Pressed
Tread Shape
Standard
Wheel Core Type
Solid
Wheel Core Material
Nylon
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
NSF Listed
No
Includes Thread Guards
Yes
Wheel Bearing Type
Ball
Wheel/Tread Material
Polyurethane
Operating Temperature - Minimum
-20 Degrees C
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Swivel Raceway Type
Double Ball
Swivel Bearing Seal Type
Sealed
Load Capacity - Maximum
440 lb

Description

Swivel, Plate Caster, Wheel Dia. 102 mm, Wheel Width 32 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
