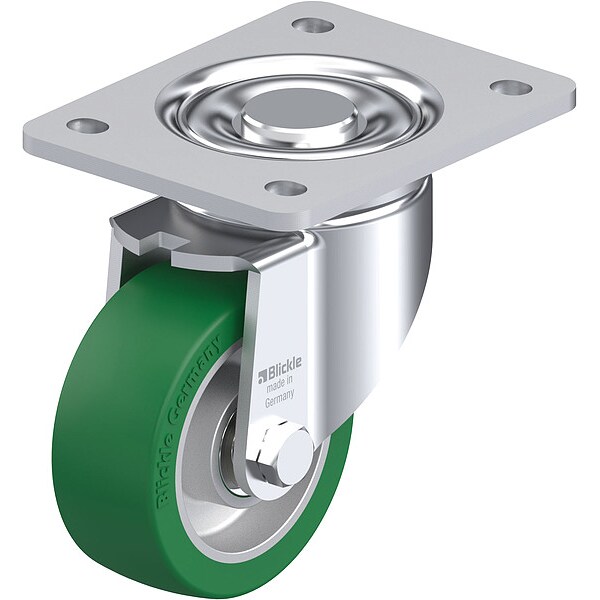

Plate Caster, Swivel, Polyurethane, 5 1/2"H

  • Mfr # LH-ALST 100K-3
  • Zoro # G914811010
product price:
$
213.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
127 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALST 100K-3
Zoro #
G914811010
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
127 mm
Wheel Width
40 mm
Mounting Plate Thickness
6 mm
Mounting Bolt Dia.
10 mm
Mounting Height
140 mm
Outside Slot Spacing - Length
105 mm
Inside Slot Spacing - Length
105 mm
Mounting Plate Length
110 mm
Outside Slot Spacing - Width
80 mm
For Axle Dia.
10 mm
Inside Slot Spacing - Width
75 mm
Overall Wheel Width
40 mm
Mounting Plate Width
110 mm
Hub Length
45 mm
Fits Chest Size
Non-Staining, Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
75 Shore A
Tread Shape
Standard
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Caster Frame Material
Steel
Features
Non-Staining, Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Series
ALST
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Number of Mounting Holes
4
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees C
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Material
Aluminum
Wheel Bearing Material
Steel
Operating Temperature - Maximum
70 Degrees C
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Frame Construction
Pressed
Load Capacity - Maximum
705 lb
Wheel Core Type
Solid
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 127 mm, Wheel Width 40 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
