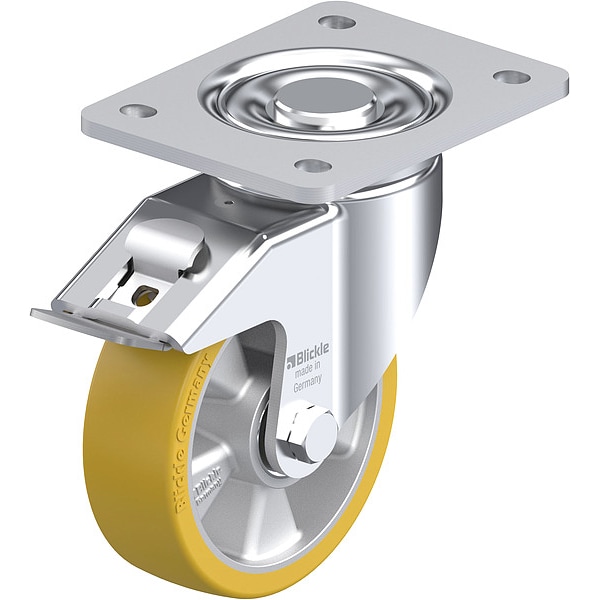

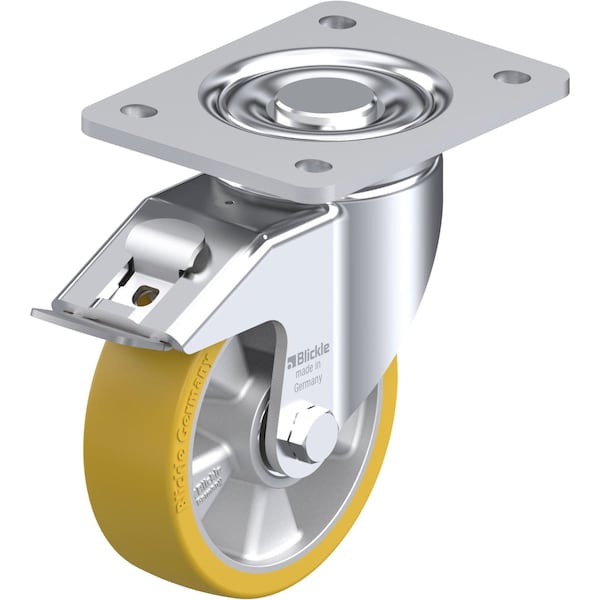

Plate Caster, Swivel, Polyurethane, 6 1/2"H

  • Mfr # LH-ALTH 125K-3-FI
  • Zoro # G214810904
product price:
$
297.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
40 mm
Mounting Height
165 mm
Number of Mounting Holes
4
Wheel Dia.
152 mm
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALTH 125K-3-FI
Zoro #
G214810904
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
40 mm
Mounting Height
165 mm
Wheel Dia.
152 mm
Mounting Bolt Dia.
10 mm
Outside Slot Spacing - Width
80.167 mm
Hub Length
45 mm
Inside Slot Spacing - Length
104.775 mm
Inside Slot Spacing - Width
75.418 mm
Mounting Plate Width
110 mm
Mounting Plate Thickness
6 mm
Outside Slot Spacing - Length
104.775 mm
Mounting Plate Length
110 mm
Overall Wheel Width
40 mm
For Axle Dia.
10 mm
Fits Chest Size
Non-Staining, Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats

Details

Number of Mounting Holes
4
Item
Plate Caster
Number of Wheels
1
Non-Marking
Yes
Wheel/Tread Color
Beige
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
System of Measurement
Metric
Caster Frame Material
Steel
Caster Mounting Type
Plate
Caster Brake Type
Total Lock
Series
ALTH
Core Color
Silver
Features
Non-Staining, Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Caster Sub-Type
Swivel
Load Capacity - Maximum
3,030 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel Core Material
Aluminum
Wheel/Tread Material
Polyurethane
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Includes Thread Guards
No
Operating Temperature - Minimum
-20 Degrees C
Operating Temperature - Maximum
70 Degrees C
Brake Location
Rear
Wheel Core Type
Solid
Frame Construction
Pressed
Wheel Bearing Type
Ball
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Wheel Hardness Rating
92 Shore A
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 152 mm, Wheel Width 40 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
