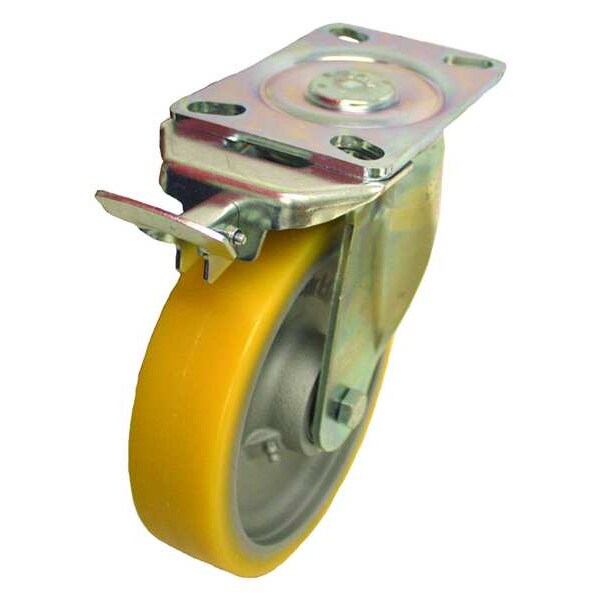

Plate Caster, Swivel, Polyurethane, 9 5/8"H

  • Mfr # US_LH-GTH 200K-16-RI05.16
  • Zoro # G3575404
product price:
$
266.99
/ea
Free Shipping & Returns

Key Features

Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Wheel Core Material
Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
US_LH-GTH 200K-16-RI05.16
Zoro #
G3575404
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4-1/2in x 6-1/4in
Overall Height
9-5/8"
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Height
9 5/8 in
Swivel Radius
6 3/4 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
1/4 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
12 mm

Details

Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Wheel Core Material
Iron
Item
Plate Caster
Load Rating
2000 lb
Swivel Lock Type
Directional Lock
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Wheel Bearing Type
Ball
Number of Wheels
1
Number of Mounting Holes
4
Tread Shape
Standard
Features
Floor Protective
Wheel Color
Yellow
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Caster Brake Included
No
Tread
Standard
Swivel Raceway Type
Double Ball
Caster Plate Hole Pattern
A
Caster Brake Type
No Brake
Non-Marking
Yes
Wheel/Tread Hardness Rating
Firm
Extended Lead
No
System of Measurement
Inch
Load Rating Range
Medium-Duty
Core Color
Silver
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Thread Guards
No
Tread Color
Light Brown
Includes
Directional Lock
Standards
DIN EN 12532
Caster Frame Material
Steel
Swivel Construction
Kingpin
Replacement Wheel
Mfr. No. GTH 200/20K
Wheel/Tread Color
Yellow
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LH Series
ESD Conductive
No
Load Capacity
2000 lb
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,980 lb
Compatible With
GTH 200/20K
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
