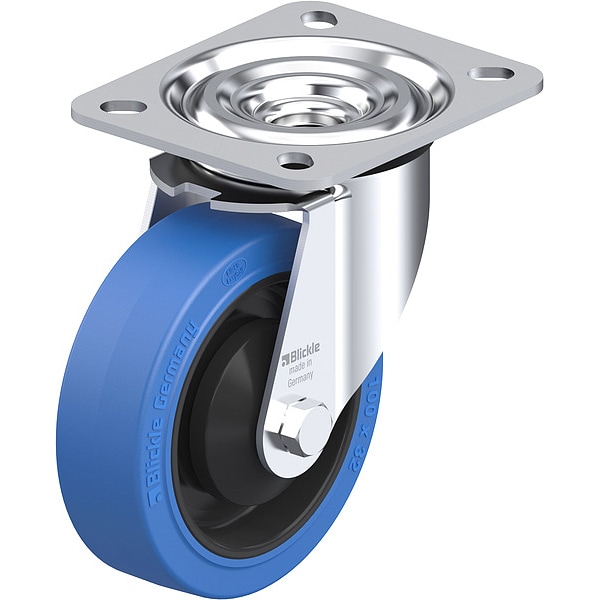

Zoro Select Plate Caster, Swivel, Rubber, 4 15/16"H L-POEV 100KA-SB - main

Plate Caster, Swivel, Rubber, 4 15/16"H

  • Mfr # L-POEV 100KA-SB

  • Zoro # G114811049

product price:  $58.75
/ea

Key Features

Number of Wheels
1
Number of Mounting Holes
4
Mounting Bolt Dia.
9 mm
Caster Brake Type
No Brake
Series
POEV
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
L-POEV 100KA-SB
Zoro #
G114811049
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
9 mm
Wheel Dia.
102 mm
Wheel Width
32 mm
Mounting Height
125 mm
Outside Slot Spacing - Length
80 mm
Inside Slot Spacing - Width
55 mm
Mounting Plate Width
86 mm
Overall Wheel Width
32 mm
Mounting Plate Length
100 mm
Inside Slot Spacing - Length
76 mm
Mounting Plate Thickness
3 mm
For Axle Dia.
8 mm
Hub Length
36 mm
Outside Slot Spacing - Width
60 mm

Details

Number of Wheels
1
Number of Mounting Holes
4
Caster Brake Type
No Brake
Series
POEV
Non-Marking
Yes
Item
Plate Caster
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Swivel Construction
Kingpin
Wheel/Tread Color
Blue
System of Measurement
Metric
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Core Color
Black
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Load Capacity - Maximum
440 lb
NSF Listed
No
Wheel Core Material
Nylon
Operating Temperature - Minimum
-20 Degrees C
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Type
Ball
Wheel Hardness Rating
65 Shore A
Swivel Bearing Seal Type
Sealed
Frame Construction
Pressed
Wheel Bearing Material
Steel
Tread Shape
Standard
Includes Thread Guards
Yes
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel/Tread Material
Rubber
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature - Maximum
80 Degrees C
Swivel Raceway Type
Double Ball

Description

Swivel, Plate Caster, Wheel Dia. 102 mm, Wheel Width 32 mm, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
