  6. PlateCaster, Swivel, Polypropylene, 7 1/4"H

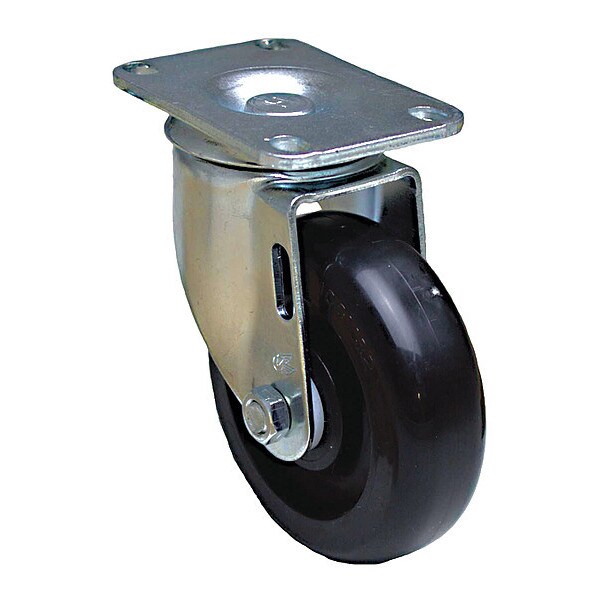

Zoro Select PlateCaster, Swivel, Polypropylene, 7 1/4"H P12S-PB060D-P2 - main

PlateCaster, Swivel, Polypropylene, 7 1/4"H

  • Mfr # P12S-PB060D-P2

  • Zoro # G3779682

product price:  $12.89
/ea

Key Features

Swivel Lock Type
No Lock Included
Non-Marking
Yes
Tread Color
Black
Thread Guards
No
Load Rating
325 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PB060D-P2
Zoro #
G3779682
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
4 5/8 in
Wheel Dia.
6 in
Mounting Plate Size
3-1/8in x 4-1/8in
Overall Height
7-1/4in
Wheel Width
1 1/4 in
Mounting Height
7 1/4 in
Mounting Bolt Dia.
5/16 in
For Axle Dia.
3/8 in
Mounting Plate Thickness
1/8in
Inside Slot Spacing - Width
2.375 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
3.375 in
Mounting Plate Length
3 1/8 in
Outside Slot Spacing - Length
3.5 in
Outside Slot Spacing - Width
2.375 in

Details

Swivel Lock Type
No Lock Included
Non-Marking
Yes
Tread Color
Black
Thread Guards
No
Load Rating
325 lb
System of Measurement
Inch
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Tread
Standard
Wheel/Tread Material
Polypropylene
Wheel Color
Black
Wheel Bearing Type
Delrin
Operating Temperature Range
-20 Degrees To 180 Degrees F
Replacement Wheel
Mfr. No. P-PB-060x013/038D
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Caster Frame Material
Steel
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Medium Duty
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Caster Plate Hole Pattern
C
Includes Thread Guards
No
Core Color
Black
Caster Brake Included
No
Tread Shape
Standard
Item
Swivel Caster
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Caster Brake Type
No Brake
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Standards
ANSI ICWM, NSF Listed
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Extended Lead
No
Wheel/Tread Hardness Rating
Hard
Number of Wheels
1
Wheel/Tread Color
Black
Series
P12 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
300 lb
Load Capacity - Maximum
325 lb
Wheel Hardness Rating
65 Shore D
Mounting Hole Type
Slot
Wheel Bearing Material
Delrin
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Maintenance Free
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
