Shop ZORO SELECT

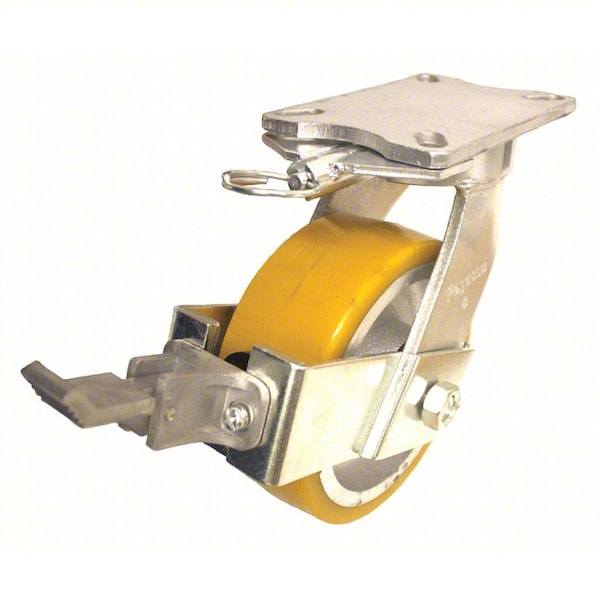

PlateCaster, Swivel, Polyurethane, 15 1/2"H

  • Mfr # P27S-UY120K-18-WK-DL

  • Zoro # G7279078

product price:  $369.99
/ea
Free Shipping & Returns

Key Features

Swivel Radius
11 1/4 in
Features
Floor Protective
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Extended Lead
No
Wheel Width
3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P27S-UY120K-18-WK-DL
Zoro #
G7279078
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
11 1/4 in
Wheel Width
3 in
Wheel Dia.
12 in
Mounting Bolt Dia.
1/2 in
Overall Height
15-1/2"
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Height
15 1/2 in
Outside Slot Spacing - Width
4.125 in
For Axle Dia.
3/4 in
Mounting Plate Length
5 1/4 in
Overall Wheel Width
3 in
Outside Slot Spacing - Length
6.125 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
3/8 in
Inside Slot Spacing - Width
3.375 in

Details

Features
Floor Protective
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Extended Lead
No
Wheel Color
Yellow
Caster Brake Type
Directional Lock, No Brake
Thread Guards
No
Load Rating
3500 lb
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. P-UY-120X030/075K
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Number of Wheels
1
Caster Plate Hole Pattern
A
Item
Plate Caster
Frame Finish
Zinc Plated
Non-Marking
Yes
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Included
Yes
Core Color
Silver
Includes
Trailing End Brake, 4-Position Directional Lock
Swivel Construction
Kingpinless
Tread Shape
Standard
Wheel Core Material
Polyurethane
Wheel Bearing Type
Ball
Swivel Lock Type
4-Position Directional Lock
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Tread Color
Yellow
ESD Conductive
No
Caster Mounting Type
Plate
Load Capacity
3500 lb
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P27 Series
Compatible With
P-UY-120X030/075K
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
3,500 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Brake Location
Rear
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 3500 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 12 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, No Brake, Tread Shape Standard
